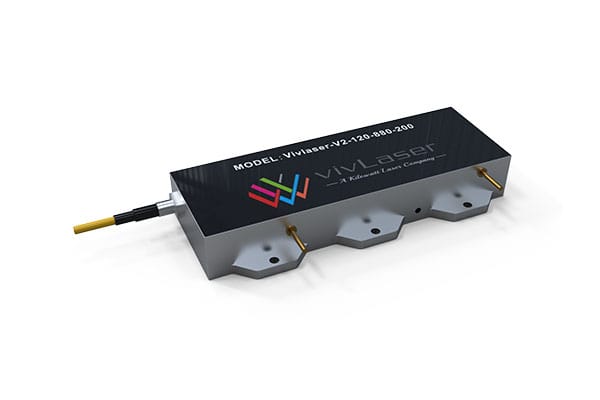

When your application demands extreme output power, narrow linewidth, and long-term spectral stability, の V2-120-880-200 delivers. This fiber-coupled 120W 878.6nm diode laser module combines a compact footprint with exceptional electro-optical efficiency, making it a top choice for solid-state laser pumping, scientific R&d, そして high-reliability OEM integration.
と 14 W/A slope efficiency and a 0.5 nm FWHM spectrum, this high-power diode offers outstanding beam control, thermal performance, and wavelength lock compatibility for precision optical systems.
Why 878.6nm is the Smart Choice for DPSS Pumping?
の 878.6nm center wavelength closely matches absorption bands of Nd:YAG and Nd:YVO₄ crystals, 提供する:
- Lower quantum defect and reduced thermal lensing
- Higher optical-to-optical conversion rates
- Improved beam quality and system efficiency
- Compatibility with volume Bragg grating (VBG) stabilization
Compared to conventional 808nm sources, の 878.6nm spectrum ensures long-term performance and higher energy output in demanding pump applications.
V2-120-880-200 – Technical Specifications
| パラメータ | Typical Value |
|---|---|
| 出力電力 (CW) | 120 w |
| 中心波長 | 878.6 nm (±0.5 nm) |
| スペクトル幅 (FWHM) | < 0.5 nm |
| Wavelength Drift Coefficient | 0.02 nm/°C |
| Slope Efficiency | 14 W/A |
| Power Conversion Efficiency | 45% |
| 動作電流 / Voltage | 9–10 A / 34 V |
| Threshold Current | 1 あ |
| Lock Current Range | 7–10 A |
| ファイバーコア / Na | 200 µm / 0.22 |
| Fiber Length / Connector | 1.5 メートル / SMA905 |
| Recommended Cooling | ≥ 150 W dissipation |
| Operating Temp. Range | 20–30 °C |
| Storage Temp. / Humidity | -20–70 °C / ≤ 85% RH |
📎 All parameters measured at 25°C unless otherwise noted.
アプリケーションシナリオ
With its 120W CW output そして narrow-linewidth 878.6nm wavelength, this module is optimized for:
- High-energy DPSS laser systems
- Advanced material processing
- Solid-state medical laser platforms
- Spectroscopy and nonlinear optics
- Custom OEM builds requiring long-lifetime diode sources
の 200µm fiber core そして SMA905 interface make integration fast and standardized across systems.
Key Features and Integration Benefits
| 特徴 | 利点 |
|---|---|
| 878.6 nm center wavelength | Ideal for Nd gain media; less thermal load |
| 0.5 nm narrow linewidth | Suitable for VBG locking |
| 14 W/A slope efficiency | Excellent power conversion |
| 120W continuous power | Supports energy-demanding laser systems |
| 7–10 A locking current range | Offers tuning flexibility with diode drivers |
| Fiber-coupled with SMA905 | Plug-and-play integration in OEM systems |
OEM Customization Options
Vivlaser offers a full range of OEM customization services:
- Custom fiber lengths or connector types (FC, LC, bare)
- Optional wavelength shifts (878.4 / 878.8 / 879.1 nm)
- Module-level driver integration
- Modified housings for different cooling setups
Trusted by Global Laser Integrators
の V2-120-880-200 is currently deployed by:
- Industrial laser manufacturers
- Medical device developers
- Photonics research labs
- DPSS system integrators across Asia, ヨーロッパ, and North America
Its high stability and thermal performance make it ideal for mission-critical, 24/7 operation environments.
📄 View the detailed technical specifications of the V2-120-880-200 laser pump source
📩 Contact us at [email protected] for pricing, lead time, or custom requests.
