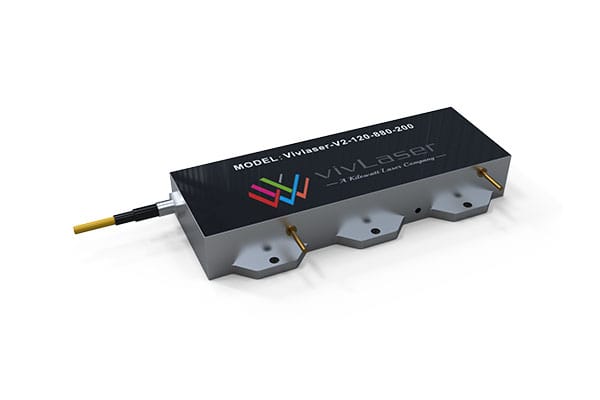

When your application demands extreme output power, narrow linewidth, and long-term spectral stability, the V2-120-880-200 delivers. This fiber-coupled 120W 878.6nm diode laser module combines a compact footprint with exceptional electro-optical efficiency, making it a top choice for solid-state laser pumping, scientific R&D, and high-reliability OEM integration.
With 14 W/A slope efficiency and a 0.5 nm FWHM spectrum, this high-power diode offers outstanding beam control, thermal performance, and wavelength lock compatibility for precision optical systems.
Why 878.6nm is the Smart Choice for DPSS Pumping?
The 878.6nm center wavelength closely matches absorption bands of Nd:YAG and Nd:YVO₄ crystals, providing:
- Lower quantum defect and reduced thermal lensing
- Higher optical-to-optical conversion rates
- Improved beam quality and system efficiency
- Compatibility with volume Bragg grating (VBG) stabilization
Compared to conventional 808nm sources, the 878.6nm spectrum ensures long-term performance and higher energy output in demanding pump applications.
V2-120-880-200 – Technical Specifications
| Parameter | Typical Value |
|---|---|
| Output Power (CW) | 120 W |
| Center Wavelength | 878.6 nm (±0.5 nm) |
| Spectral Width (FWHM) | < 0.5 nm |
| Wavelength Drift Coefficient | 0.02 nm/°C |
| Slope Efficiency | 14 W/A |
| Power Conversion Efficiency | 45% |
| Operating Current / Voltage | 9–10 A / 34 V |
| Threshold Current | 1 A |
| Lock Current Range | 7–10 A |
| Fiber Core / NA | 200 µm / 0.22 |
| Fiber Length / Connector | 1.5 m / SMA905 |
| Recommended Cooling | ≥ 150 W dissipation |
| Operating Temp. Range | 20–30 °C |
| Storage Temp. / Humidity | -20–70 °C / ≤ 85% RH |
📎 All parameters measured at 25°C unless otherwise noted.
Application Scenarios
With its 120W CW output and narrow-linewidth 878.6nm wavelength, this module is optimized for:
- High-energy DPSS laser systems
- Advanced material processing
- Solid-state medical laser platforms
- Spectroscopy and nonlinear optics
- Custom OEM builds requiring long-lifetime diode sources
The 200µm fiber core and SMA905 interface make integration fast and standardized across systems.
Key Features and Integration Benefits
| Feature | Benefit |
|---|---|
| 878.6 nm center wavelength | Ideal for Nd gain media; less thermal load |
| 0.5 nm narrow linewidth | Suitable for VBG locking |
| 14 W/A slope efficiency | Excellent power conversion |
| 120W continuous power | Supports energy-demanding laser systems |
| 7–10 A locking current range | Offers tuning flexibility with diode drivers |
| Fiber-coupled with SMA905 | Plug-and-play integration in OEM systems |
OEM Customization Options
Vivlaser offers a full range of OEM customization services:
- Custom fiber lengths or connector types (FC, LC, bare)
- Optional wavelength shifts (878.4 / 878.8 / 879.1 nm)
- Module-level driver integration
- Modified housings for different cooling setups
Trusted by Global Laser Integrators
The V2-120-880-200 is currently deployed by:
- Industrial laser manufacturers
- Medical device developers
- Photonics research labs
- DPSS system integrators across Asia, Europe, and North America
Its high stability and thermal performance make it ideal for mission-critical, 24/7 operation environments.
📄 View the detailed technical specifications of the V2-120-880-200 laser pump source
📩 Contact us at [email protected] for pricing, lead time, or custom requests.
