Blue Laser 3D Printing: The Smart Choice for Copper and Gold Parts

Copper is a terrible material to laser melt—unless you’re using the right light.

Blue lasers are revolutionizing the 3D printing of copper and gold by delivering unmatched absorption, control, and reliability in metal additive manufacturing.

In metal 3D printing, if you can’t melt it—you can’t build it. For years, materials like copper have resisted traditional infrared lasers due to extreme reflectivity. But that’s changing.

Why Is Printing High-Reflective Metals So Challenging?

It’s not a power issue. It’s a physics problem.

Copper and gold absorb less than 10% of standard 1064nm infrared laser energy, causing unstable melt pools, optical damage, and process failure.

• Energy reflects back instead of melting the metal
• Risk of damage to optics and laser sources
• Inconsistent melting results in layer defects
• High rejection rates increase manufacturing cost

Copper absorbs over 60% of 450nm blue laser light—turning a once impossible task into a reliable process.

This is why blue lasers are becoming the preferred choice for additive manufacturing of copper alloys¹.

What Makes Blue Lasers So Effective for Copper and Gold?

It’s all about matching light to electrons.

Blue lasers (~450nm) align with the resonant absorption peaks of copper and gold², maximizing energy transfer and minimizing reflection.

• Higher absorption = less power needed
• More stable melt pools
• Fewer defects in the early layers
• Lower maintenance for optics and systems

Blue lasers don’t just enable absorption—they improve precision, safety, and consistency for copper-based printing.

However, it’s important to note: silver and aluminum are still poor absorbers of blue light. These metals require other laser wavelengths like green or hybrid systems.

Why Doesn’t Blue Laser Work for Aluminum or Silver?

The science is straightforward.

Silver and aluminum reflect more than 90% of 450nm blue light, making them inefficient for blue laser melting in 3D printing³.

• Aluminum has a high thermal conductivity and low absorption at 450nm
• Silver reflects nearly all visible light, including blue
• These metals require green (~515nm) or IR lasers⁴ with surface treatments

Metal	Blue Laser Absorption (450nm)	Effective for Blue Laser 3D Printing?
Copper	High (~60–70%)	✅ Yes
Gold	High (~50–60%)	✅ Yes
Silver	Very Low (<5%)	❌ No
Aluminum	Low (~7–10%)	❌ No

Blue laser is not a universal solution—but it’s the best tool for copper and gold printing. That precision focus makes it a game-changer in high-performance applications.

How Does Blue Laser Printing Improve Precision and Efficiency?

The difference is in the detail.

Blue laser 3D printing⁵ enables tighter focus, stable melt pools, and high-density builds for copper parts⁶ that were previously unprintable.

• Spot sizes as small as 30–50μm
• High first-layer success rate
• Minimal spatter and back-reflection
• Superior resolution in micro-scale components

Industries needing fine copper coils, thermal components, or dense antenna structures benefit the most—blue laser allows reliable printing where IR fails.

Where Is Blue Laser 3D Printing Being Used?

It’s not just a lab experiment. It’s running in production.

Sectors like automotive, aerospace, electronics, and healthcare are adopting blue laser AM⁷ for advanced copper and gold components⁸.

Real-World Use Cases:

• EV Motors: Copper hairpin coils for high-efficiency electric drivetrains
• Aerospace: Lightweight copper heat exchangers
• Electronics: High-density copper interconnects and antenna parts
• Medical: Gold-based micro implants and electrodes

If your application involves copper or gold and demands high conductivity, thermal management, or fine geometry—blue laser AM⁷ is your new competitive edge.

What Are Vivlaser’s Capabilities in Blue Laser Modules?

Power alone doesn’t make it work. Integration matters.

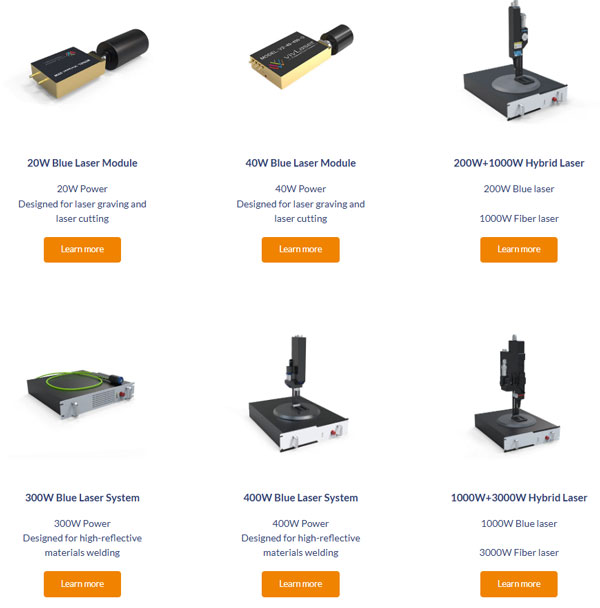

Vivlaser offers industrial-grade blue laser modules⁹ from 20W to 500W, designed for stable, high-absorption printing¹⁰ of copper and gold.

Key Features:

• Power ranges: 20W / 40W / 200W / 300W / 400W / 1000W
• Water chiller cooling with ±0.1°C accuracy
• Fiber-coupled output (105μm or 200μm)
• Custom beam shaping: round, line, or annular
• Active power feedback for real-time stability
• Modular heat dissipation for 24/7 operation

Vivlaser modules are production-ready—built for reliability, high absorption rates, and long duty cycles in additive manufacturing systems.

We support system integrators, OEMs, and research labs with customized solutions and responsive technical support.

Is Blue Laser the Future of Metal Additive Manufacturing?

For copper and gold—yes. For other metals—use the right tool.

Blue laser technology¹¹ is evolving from niche R&D to scalable manufacturing, with Vivlaser enabling affordable and dependable adoption in global markets.

• Top-tier systems (Trumpf, Panasonic) remain expensive
• Mid-market integrators need flexible, cost-effective modules
• Vivlaser fills that gap—offering performance without the premium

Blue laser won’t replace all other lasers—but for copper and gold 3D printing¹², it will soon be the standard.

Vivlaser is proud to power that shift, one high-performance module at a time.

Conclusion

Blue lasers unlock stable, precise, and efficient 3D printing of copper and gold—Vivlaser makes it practical for industrial adoption.
