Professional clinics and home beauty devices are booming—but are your laser modules keeping up?
Medical & aesthetic laser modules must be safe, stable, and easy to integrate. Wavelength, power, cooling, and certifications are the keys to choosing the right module.
Laser modules are the core of beauty and medical devices. But not all lasers are created equal. Let’s break down how to choose the right one and how Vivlaser’s modules are already powering top-tier devices worldwide.
Why is wavelength selection critical in medical and aesthetic lasers?
A mismatch in wavelength means ineffective or unsafe treatment. But the right wavelength unlocks real results.
Each wavelength triggers a specific biological effect, so selecting the correct one ensures both safety and effectiveness.
Treatment-Specific Wavelengths
| Wavelength | Breakdown of Key Applications |
|---|---|
| 808 nm | – Hair removal – Wrinkle reduction – Skin rejuvenation |
| 980 nm | – Pain therapy – Vascular treatment – Dental surgery |
| 635 nm | – LLLT – Inflammation relief – Wound healing |
| Multi-wavelength | – Combined functions in one system |
Smart Module Design
Vivlaser supports multi-wavelength customizations—635nm, 808nm, 915nm, 980nm—all combined in one module with single-fiber output. This is especially helpful for multifunctional beauty equipment and portable therapy devices.
How much power do you really need?
Too much power? Safety risk. Too little? No results. Stability matters most.
Home devices need low power for safety. Clinics need higher power for results. But both need stable output to protect users and ensure consistent performance.
Matching Power to Application
| Use Case | Breakdown of Power Range and Notes |
|---|---|
| Home Beauty | – Power Range: 0.5–5W – Notes: Safe for consumer use |
| Professional Clinics | – Power Range: 5–30W – Notes: Enables deeper tissue interaction |
| Dental/Medical | – Power Range: 15–30W – Notes: Suitable for surgical precision |
Vivlaser modules pass long-term stress testing (20,000+ hours) to ensure stability over time. That means fewer replacements, less calibration, and reliable user results.
Why does beam quality and fiber coupling matter?
A poor beam means uneven results—and wasted energy. Precision starts at the fiber core.
Small-core fiber coupling ensures the beam is precise, focused, and repeatable—key for beauty treatments and surgical use.
Understanding Beam Quality
What matters:
-
Fiber core size: Vivlaser offers 50µm and 105µm coupling options
-
Beam uniformity: Ensures consistent treatment coverage
-
Low NA (0.22): High precision focus with minimal divergence
| Core Size | Breakdown of Use Cases and Benefits |
|---|---|
| 50µm | – Use Cases: Targeted skin treatment, dentistry – Benefit: High intensity, small spot area |
| 105µm | – Use Cases: General skin therapy, physiotherapy – Benefit: Broader area, controlled diffusion |
This translates into smoother wrinkle removal, more accurate gum surgery, and repeatable LLLT therapy.
Why does air cooling make integration easier?
Bulky water cooling increases size and complexity—air cooling keeps it simple.
All Vivlaser aesthetic modules are air-cooled. That means compact size, no leaks, and simple plug-and-play installation.
Benefits of Air Cooling
-
Reduces size and weight
-
Eliminates plumbing complexity
-
Increases reliability and device life
-
Simplifies regulatory and electrical design
Vivlaser’s modules are designed for fast integration into handheld and tabletop systems—whether for at-home beauty or clinical dental use.
| Feature | Breakdown of Benefits |
|---|---|
| No water pipes | – Lower maintenance – Easier design |
| Lightweight | – Suited for portable devices |
| Low heat buildup | – Safer – Longer device life |
Do you need certifications for global markets?
Yes. Without compliance, there’s no market entry.
Medical and beauty devices must meet IEC, CE, and RoHS requirements to sell in global markets.
What Vivlaser Provides
-
CE, RoHS, ISO compliance
-
RMA and failure analysis for long-term projects
-
Dedicated safety-stock for fast replacement
Whether you’re building for the U.S., Europe, or Asia-Pacific markets, Vivlaser ensures your device meets the necessary standards.
What are the real-world applications?
From beauty to dental and veterinary use—Vivlaser modules already power devices worldwide.
Use cases include hair removal, scar treatment, LLLT, pet physiotherapy, dental gum therapy, and more.

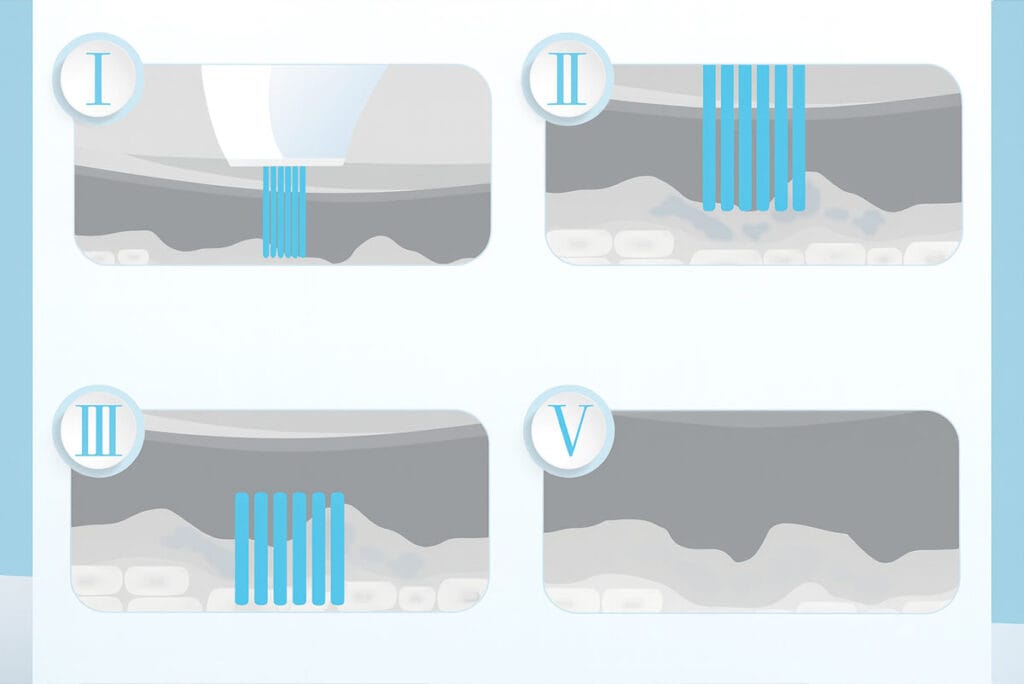

Aesthetic Case: Iluminage Skin Device
Powered by Vivlaser, this fractional rejuvenation laser delivers professional skincare results in a consumer-safe format. Its compact air-cooled design makes it perfect for home use.
Medical Case: Pet Rehabilitation Laser
Veterinary clinics use Vivlaser’s compact 980nm/635nm combo modules for pain management in dogs and cats. Air-cooled and portable—safe for pets and operators alike.
Dental Case: Laser Soft-Tissue Systems
Vivlaser modules power 980nm gum reshaping and 635nm PDT infection control devices—ensuring patient comfort, precision, and fast recovery.
| Segment | Breakdown of Module Type and Benefits |
|---|---|
| Aesthetic | – Module Type: 808nm / Multi-wavelength – Benefits: Skin & hair treatment |
| Physiotherapy | – Module Type: 980nm / 635nm – Benefits: Inflammation relief, tissue repair |
| Dental | – Module Type: Dual-wavelength (980+635) – Benefits: Surgery + infection control |
What makes Vivlaser stand out?
Vivlaser isn’t just a module supplier—it’s a design partner.
From custom specs to stable delivery, Vivlaser supports your full product cycle.
Our Advantages
-
Air-cooled design: Simplifies your engineering
-
Wavelength range: 635–980nm, with mix-and-match flexibility
-
Customization: Power, wavelength, packaging, and fiber options
-
Reliability: 20,000+ hours lifetime testing
-
Speed: Short lead times and finished goods inventory
-
Compliance: Supports CE, RoHS documentation
Vivlaser serves top brands in beauty and medical sectors—helping them shorten time-to-market and reduce R\&D risk.
Conclusion
Choosing the right laser module means understanding your application—and selecting for wavelength, stability, cooling, and integration. Vivlaser delivers all of these in compact, certified packages.
