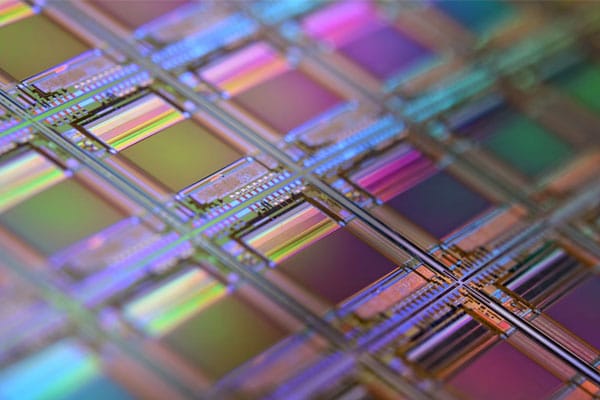

When people think of chips, they imagine ultra-fast computers or smart phones. But few know that making these tiny chips depends on layers of materials stacked so precisely, it’s like building a house molecule by molecule. Two important behind-the-scenes technologies that help this happen are wafer heating and thermal evaporation.
Wafer heating is the process of warming up a silicon wafer during chip fabrication. Thermal evaporation is a way to deposit thin layers of materials by turning them into vapor and letting them condense on the wafer’s surface.
Why Do We Heat the Wafer?
Think of the wafer as the “baking tray” for all chip layers. When it’s heated, several things happen:
-
Materials stick better
-
Chemical reactions occur more smoothly
-
Atoms move into better positions
Just like preheating your oven makes your pizza crispier, heating a wafer helps the next material layer form correctly. Depending on the process, the temperature can range from 100°C to over 1000°C.
There are different ways to heat a wafer:
-
Hot plates (common in labs)
-
Infrared lamps (fast and efficient)
-
Laser heating (highly precise, and adaptable for both small and large heating areas depending on the process requirements)
How Is Laser Heating Used?

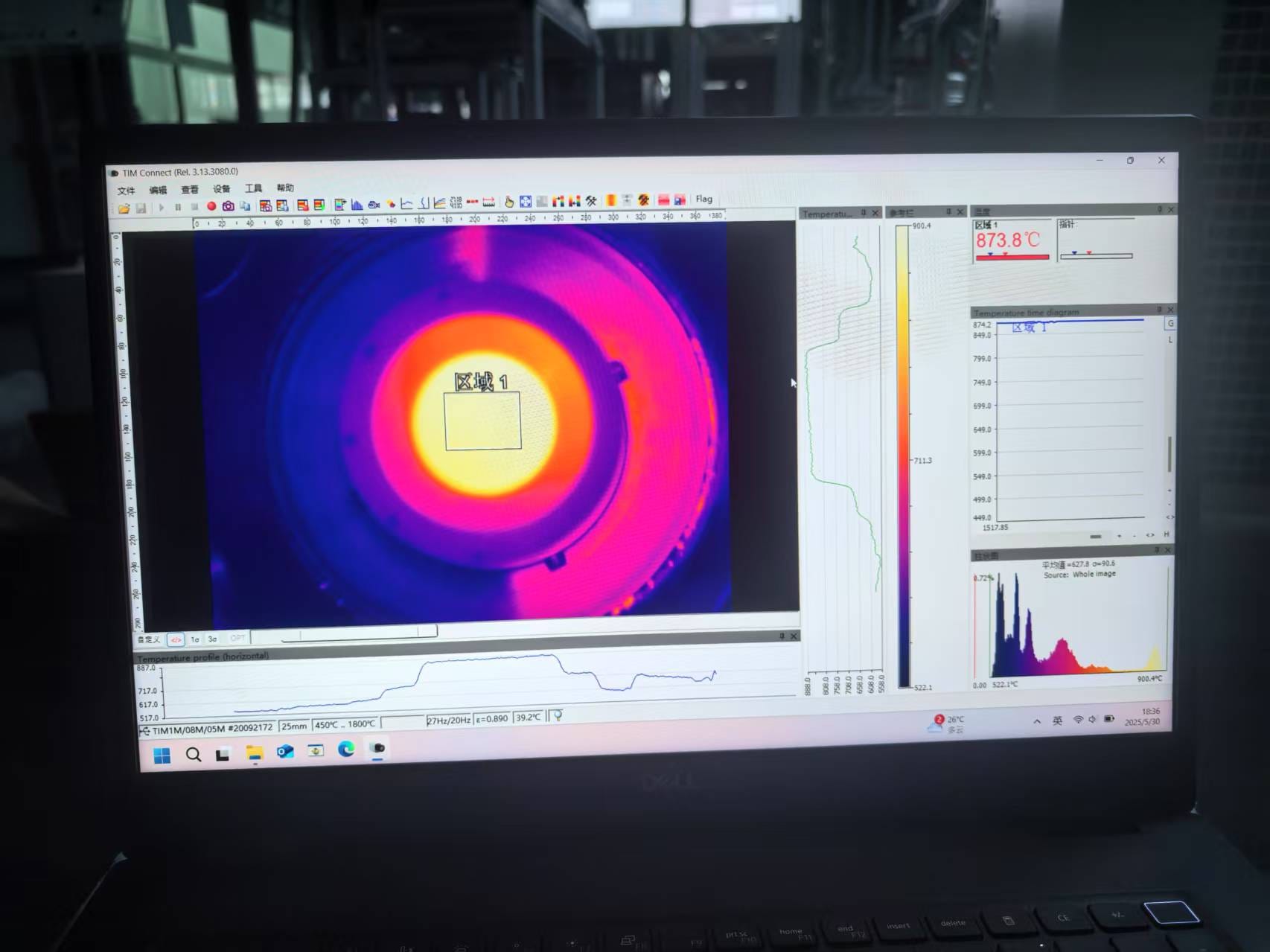

Laser heating provides localized, fast-response heating that is perfect for precise thermal processes. It works by focusing a laser beam onto the wafer surface, allowing for targeted temperature control without heating the whole system. This method is:
-
Non-contact and clean
-
Extremely fast to heat up and cool down
-
Easy to automate and integrate into modern equipment
Vivlaser offers advanced laser heating systems specifically designed for semiconductor and advanced material applications.
Our systems feature:
-
Uniform laser spot energy distribution, ensuring consistent heating across the wafer surface
-
Adjustable spot shapes, such as line, circle, or rectangular beam profiles for process-specific needs
-
Precise temperature control, supporting programmable thermal profiles and rapid thermal cycling
-
Stable beam quality, reducing thermal gradients and minimizing thermal stress on the wafer
These capabilities make Vivlaser’s laser heating ideal for applications like:
-
Thermal annealing
-
Laser-assisted deposition
-
Crystallization processes
-
High-precision localized heating in MEMS or OLED production

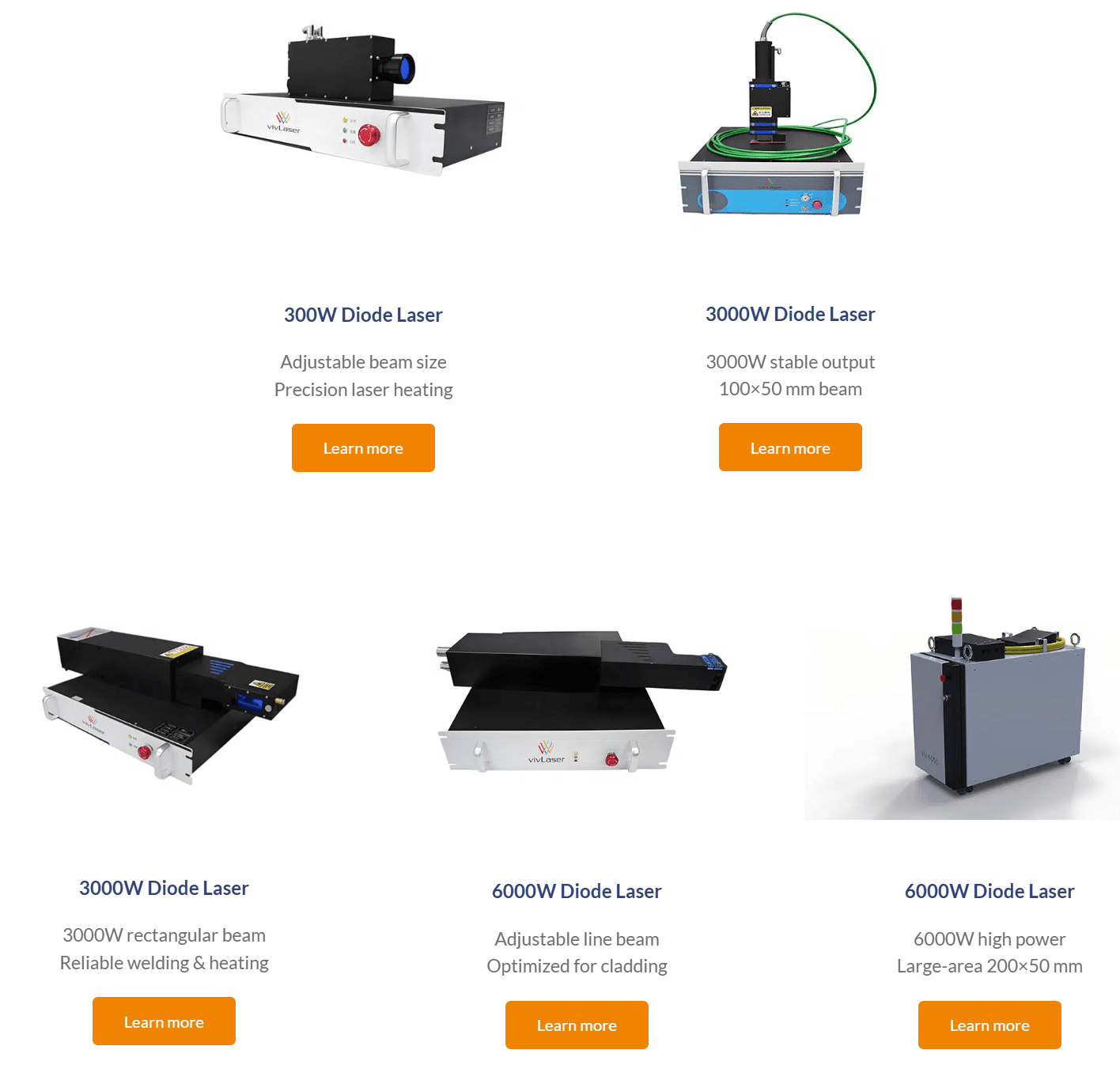

Check out Vivlaser’s high power diode lasers profile:
What Is Thermal Evaporation?
Thermal evaporation sounds fancy, but the idea is simple. We put a material (usually metal) inside a vacuum chamber. Then we heat it up until it turns into gas (vapor). That vapor floats up and lands on the wafer, forming a super-thin layer.
Here’s a simple way to picture it:
-
Imagine boiling water inside a sealed glass box.
-
The steam rises and condenses on the cool glass lid.
-
Replace water with gold or aluminum, and that’s thermal evaporation!
This method is useful when we need very pure, very smooth layers. It’s especially common for:
-
Coating mirrors or sensors
-
Making electrodes in chips
-
Adding thin metal layers for electrical contact
How Do These Two Work Together?
Heating and evaporating often go hand-in-hand:
-
Heating the wafer before or during evaporation makes the new layer stick better.
-
It also helps the atoms settle into a more organized, stable structure.
-
Without heating, the thin film might peel off or have weak spots.
Some advanced systems even heat and evaporate at the same time, all in a vacuum chamber. This ensures better quality and saves time in production.
Why It Matters in Chip Manufacturing
Modern chips are built layer by layer. Each layer might be only a few nanometers thick (a human hair is 80,000–100,000 nanometers wide). That means:
-
Every layer must be extremely uniform
-
It must bond perfectly with the layer below
-
It can’t crack, bubble, or peel
Wafer heating and thermal evaporation are essential for achieving this level of precision. Without them, high-performance electronics like smartphones, medical devices, or aerospace systems simply wouldn’t work.
The Big Picture
These two processes may not be as well-known as AI or 5G, but they are part of the hidden magic that makes advanced electronics possible.
Whether it’s adding a shiny mirror layer to a laser device or preparing a wafer for nanometer-scale transistors, wafer heating and thermal evaporation play a quiet yet crucial role in shaping the future of technology.
Next time you hold a smartphone, remember—beneath that smooth screen are layers built with heat and vapor, all with the precision of atomic Lego blocks.
