The VIV-20000W is a high-power laser heating system designed for large-area thermal processing. With a rectangular spot size of 600×800 mm and up to 20 kW output power, it delivers efficient, uniform heating for industrial-scale applications.
Features
- Ultra-large rectangular spot for wide-area heating
- High output power up to 20,000 W
- Stable dual-mode control (external & internal control)
- Suitable for high-throughput industrial processing
- Precise power adjustment for process flexibility
Functions:
- Large-Area Laser Heating
- Uniform Rectangular Spot Processing
- High-Power Industrial Thermal Applications
Parameters
| VIV-20000W | Unit | Spec | |
|---|---|---|---|
| Optical parameters | Output Power | W | 20000 |
| Power Adjustment Range | % | 10%~100% | |
| Beam Size | mm | 600 × 800 | |
| Working Distance | mm | 2140 | |
| Cable Length | m | 8 | |
| Aiming Beam | mW | ≥1 | |
| Electrical Parameters | Input Voltage Vop | V | 380V / 50–60 Hz (Three-phase) |
| Rated Power Consumption | W | 40000W | |
| Thermal Parameters | Operating Temperature | ℃ | 10-40 |
| Storage Temperature | ℃ | 0-60 | |
| Nominal Cooling Capacity | W | 20,000 W (Recommended ≥12.5 HP chiller) | |
| Cooling Water Flow Rate | L/min | ≥ 220 L/min | |
| Cooling Water Set Temperature | ℃ | 25 | |
| The tests for all parameters were conducted at 25°C. | |||
| This power refers to the power output after passing through the heating head. | |||

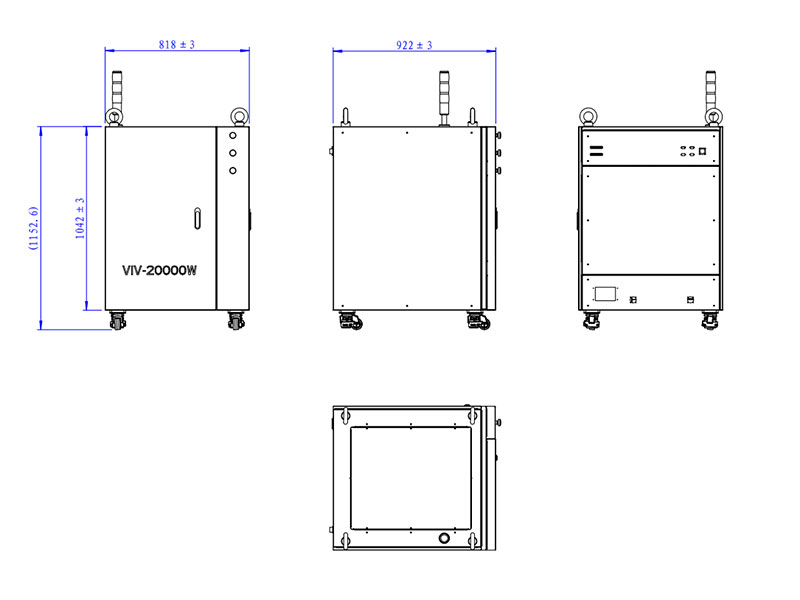

Dimensions
