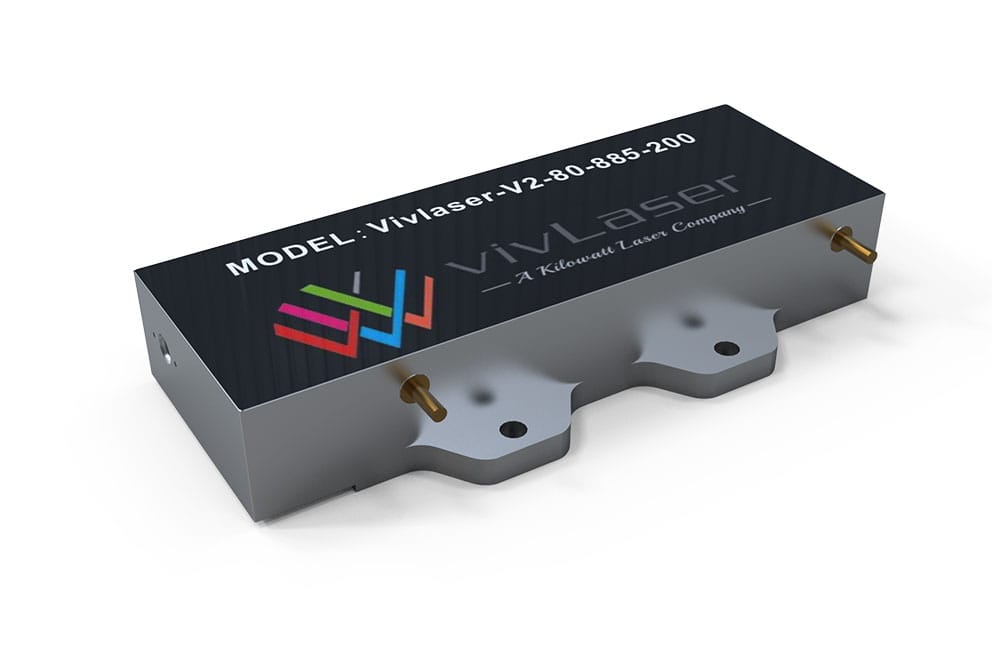

The Vivlaser V2-80-885-200 is a high-power 80W continuous-wave fiber-coupled diode laser at 885nm, designed for solid-state laser pumping and scientific research. With a narrow linewidth (≤0.5nm) and excellent wavelength stability, it ensures precise and consistent performance in industrial and laboratory applications.
Equipped with a 200µm fiber core and SMA905 connector, the V2-80-885-200 achieves 8.5 W/A slope efficiency and 45% power conversion efficiency. Its robust thermal design (≥100W dissipation recommended) and long operating lifetime make it a cost-effective and reliable solution for OEM integration, advanced optics, and research labs worldwide.
Features
- 80W CW output at 885nm
- Narrow linewidth ≤0.5nm, stable wavelength
- High efficiency (45%), slope efficiency 8.5 W/A
- 200µm fiber, NA 0.22, SMA905 connector
- Operating current 10.5–11.5 A, voltage 15–16 V
- Recommended ≥100W thermal dissipation
- Long lifetime, stable output
Application
- DPSSL pumping
- Scientific research (spectroscopy, optics, physics labs)
Parameters
| Model:V2-80-885-200 | Unit | Lower Spec | Typical | Upper Spec | |
|---|---|---|---|---|---|
| Optical | Output Peak Power | W | 80 | ||
| Center Wavelength λ | nm | 884.5 | 885 | 885.5 | |
| Spectral Width FWHM | nm | 0.3 | 0.5 | ||
| Wavelength Temp. Coefficient | nm/℃ | 0.02 | |||
| Fiber Parameters | Fiber Numerical Aperture | ||||
| Fiber Core | µm | 200 | |||
| Connector Type | - | SMA905 | |||
| Fiber Length | m | 1.4 | 1.5 | 1.6 | |
| Electrical Parameters | Operating Current Iop | A | 9 | 10 | |
| Threshold Current Ith | A | 1 | |||
| Operating Voltage Vop | V | 19 | 20 | ||
| Slope Efficiency | W/A | 10 | |||
| Power Conversion Efficiency | % | 45 | |||
| Wavelength Stabilized Operating Current | A | 7 | 10 | ||
| Thermal Parameters | Operating Temperature | ℃ | 20 | 30 | |
| Operating Relative Humidity | % | 75 | |||
| Storage Temperature | ℃ | -20 | 70 | ||
| Storage Relative Humidity | % | 5 | 85 | ||
| Recommended Thermal Dissipation Capacity | W | ≥120 | |||
| The tests for all parameters were conducted at 25°C. | |||||
