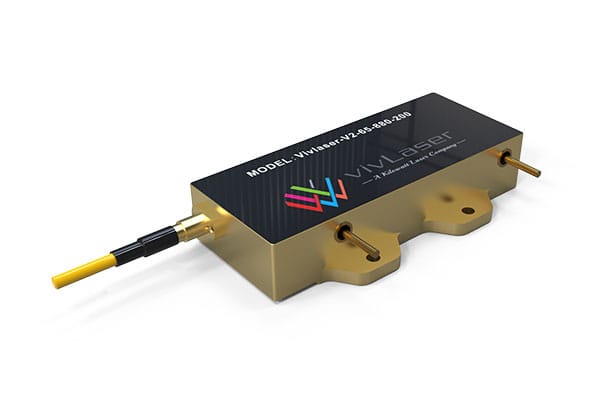

The Vivlaser V2-65-880-200 is a 65W continuous-wave fiber-coupled diode laser at 878.6nm, optimized for solid-state laser pumping and scientific research. With a narrow linewidth (≤0.5nm) and stable wavelength control, it delivers precise performance and high reliability for demanding industrial and research applications.
Featuring a 200µm fiber core with SMA905 connector, this laser achieves high slope efficiency (8.5 W/A) and 45% power conversion efficiency. Its robust thermal management design (recommended ≥100W dissipation) and proven long lifetime make it an ideal choice for OEM system integration and long-term laboratory use.
Features
- 65W CW output at 878.6nm
- Narrow linewidth ≤0.5nm, stable wavelength
- High efficiency (45%), slope efficiency 8.5 W/A
- 200µm fiber, NA 0.22, SMA905 connector
- Operating current 9–10 A, voltage 15.5–16.5 V
- Strong thermal design, recommended ≥100W dissipation
- Long operating lifetime
Application
- Solid-state laser pumping (UV, ultrafast, high-precision lasers)
- Scientific research (spectroscopy, optics, physics labs)
Parameters
| Model:V2-65-880-200 | Unit | Lower Spec | Typical | Upper Spec | |
|---|---|---|---|---|---|
| Optical | Output Peak Power | W | 65 | ||
| Center Wavelength λ | nm | 878.1 | 878.6 | 879.1 | |
| Spectral Width FWHM | nm | 0.3 | 0.5 | ||
| Wavelength Temp. Coefficient | nm/℃ | 0.02 | |||
| Fiber Parameters | Fiber Numerical Aperture | NA | 0.22 | ||
| Fiber Core | µm | 200 | |||
| Connector Type | - | SMA905 | |||
| Fiber Length | m | 1.4 | 1.5 | 1.6 | |
| Electrical Parameters | Operating Current Iop | A | 9 | 10 | |
| Threshold Current Ith | A | 1 | |||
| Operating Voltage Vop | V | 15.5 | 16.5 | ||
| Slope Efficiency | W/A | 8.5 | |||
| Power Conversion Efficiency | % | 45 | |||
| Wavelength Stabilized Operating Current | A | 7 | 10 | ||
| Thermal Parameters | Operating Temperature | ℃ | 20 | 30 | |
| Operating Relative Humidity | % | 75 | |||
| Storage Temperature | ℃ | -20 | 70 | ||
| Storage Relative Humidity | % | 5 | 85 | ||
| Recommended Thermal Dissipation Capacity | W | ≥100 | |||
| The tests for all parameters were conducted at 25°C. | |||||
