How Semiconductor Laser Works?

Powerful, compact, and essential—semiconductor lasers are the invisible backbone of today’s technology, from smartphones to surgical tools.

A semiconductor laser generates coherent light by stimulating electrons inside a semiconductor material, enabling precise and efficient energy conversion for countless applications.

They’re not just light sources—they’re enablers of entire industries. To truly understand their role in modern innovation, we must trace their journey from physics to factories and from labs to life-changing applications.

From Flashlights to the Light of High Technology: Why Are Semiconductor Lasers Revolutionary?

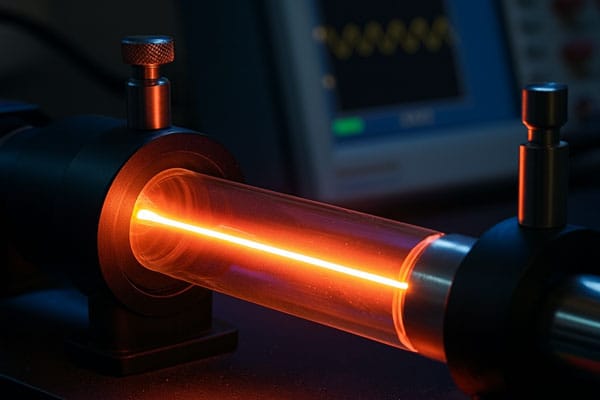

Traditional lasers, like gas or solid-state types, have powered science and industry for decades. But they are bulky, expensive, and energy-hungry. Semiconductor lasers disrupted this model.

Semiconductor lasers surpass traditional lasers in size, efficiency, and cost, making them suitable for integration into compact, high-performance systems.

While gas lasers rely on large tubes and high voltages, and solid-state lasers need precise optical alignment, semiconductor lasers are built on tiny chips using scalable semiconductor processes. This shift enables everyday devices like DVD players and smartphones to harness laser technology. This article will explain why they matter and how they work.

What Makes Semiconductor Lasers Work? The Physics Behind the Light

Lasers are often seen as magical beams of light. But the science behind them is grounded in quantum physics.

Semiconductor lasers operate through carrier injection¹, population inversion, and stimulated emission², all happening within a microscopic p-n junction.

1. Quantum Mechanical Foundations

1.1 Energy Band Theory

Semiconductors have unique energy band structures. The conduction band holds free electrons, while the valence band holds holes. The energy gap between them (bandgap) defines the photon energy, which directly corresponds to laser wavelength.

1.2 Carrier Injection and Population Inversion

Under forward bias, electrons and holes are injected into the active region. When enough carriers exist in excited states, population inversion is achieved—a critical state for lasing.

2. Stimulated Emission and Light Amplification

2.1 Spontaneous vs. Stimulated Emission

Spontaneous emission occurs randomly. In contrast, stimulated emission² occurs when an incoming photon causes an excited electron to drop to a lower energy state, emitting a second identical photon.

2.2 Gain Medium and Optical Cavity

The semiconductor material acts as a gain medium. Two reflective facets form a cavity. Photons bounce back and forth, amplifying light intensity until some escape through one facet as a laser beam.

What Are Semiconductor Lasers Made Of? Materials and Manufacturing Explored

Designing a good laser starts with the right materials and precise engineering.

Semiconductor lasers rely on III-V compound materials³ and precision fabrication methods like MOCVD⁴ and photolithography to control wavelength and power.

3.1 Core Semiconductor Materials

3.1.1 III-V Compounds

Materials like Gallium Arsenide (GaAs), Indium Phosphide (InP), and Gallium Nitride (GaN) are favored for their direct bandgap and tunable properties:

Material	Wavelength Range	Applications
GaAs	630–980 nm	Pump sources, IR lasers
InP	1300–1550 nm	Telecom lasers
GaN	400–480 nm	Blu-ray, lighting

3.1.2 Quantum Well Structures

Quantum wells confine carriers in thin layers, enhancing interaction and emission efficiency. This leads to higher performance in terms of gain and threshold current.

3.2 Laser Cavity Design

3.2.1 Fabry-Pérot (FP) Resonators

Most common design, using natural reflections from cleaved crystal facets to create a cavity. The length and reflectivity determine mode structure.

3.2.2 DFB and DBR Structures

Distributed Feedback (DFB) and Distributed Bragg Reflectors (DBR) introduce periodic gratings within or outside the cavity. These structures select a single longitudinal mode and improve spectral purity—critical for fiber optics.

3.3 Manufacturing and Packaging

3.3.1 Epitaxial Growth

Crystal layers are grown via MBE or MOCVD⁴. These allow for atomic-level control of thickness and doping profiles.

3.3.2 Chip Cleaving and Packaging

Wafers are diced into individual chips. Packaging involves thermal management (e.g., heat sinks), optical alignment, and electrical bonding. Vivlaser uses cleanroom facilities to ensure yield and quality.

Where Are They Used? Applications and Market Dynamics

Semiconductor lasers are not just lab tools. They are embedded in every layer of our modern world.

These lasers play a critical role in telecommunications, manufacturing, sensing, healthcare, and daily consumer products.

4.1 Information and Communication

4.1.1 Fiber Optic Communication⁵

Lasers in the 1300–1550 nm range are essential for long-distance fiber optic communication. These wavelengths offer low attenuation in silica fibers, enabling high-speed data transmission over thousands of kilometers. Such systems support the backbone of global internet infrastructure, including 5G networks, submarine cables, and hyperscale data centers.

Different wavelength bands serve different purposes: 1310 nm is typically used for shorter-range links due to zero dispersion, while 1550 nm is favored for long-haul systems because of minimal signal loss and compatibility with erbium-doped fiber amplifiers (EDFAs). The narrow spectral width and stable output of these lasers ensure reliable, high-bandwidth performance across vast distances.

4.1.2 Optical Storage⁶

Lasers are the key enablers in optical data storage technologies such as CDs, DVDs, and Blu-ray discs. Each format relies on a specific laser wavelength to precisely read and write microscopic pits on the disc surface: infrared lasers around 780 nm for CDs, red lasers at 650 nm for DVDs, and blue-violet lasers at 405 nm for Blu-ray discs.

The shorter the wavelength, the smaller the laser spot size, which allows for higher data density. This principle drove the evolution from CD to Blu-ray, drastically increasing storage capacity from hundreds of megabytes to tens of gigabytes per disc. While less dominant today, optical storage remains relevant in archival systems and some consumer electronics due to its durability and cost-effectiveness.

4.2 Industrial and Manufacturing

4.2.1 Metal Processing

High power diode lasers are key in welding, and surface treatments. Vivlaser’s 2000W modules support robust, reliable operation in factories.

4.2.2 Additive Manufacturing⁷

Technologies like SLS rely on diode lasers to fuse metal or plastic powders layer by layer.

4.3 Medical and Sensing

4.3.1 LiDAR⁸

LiDAR⁸ systems need compact, pulsed lasers with narrow beam divergence. Used in autonomous vehicles and drones.

4.3.2 Medical Devices

Laser modules are used in dermatology, ophthalmology, and diagnostics. Vivlaser’s multi-wavelength modules support precision therapy and analysis.

4.4 Consumer Electronics

4.4.1 Barcode Scanners and Pointers

Low-power lasers scan retail products or serve in handheld projectors. Compactness and energy efficiency are key.

What Comes Next? Opportunities and Challenges in Laser Innovation

While semiconductor lasers are powerful today, tomorrow demands more.

Emerging applications like AI and quantum tech require lasers that are more efficient, integrated, and thermally robust.

5.1 Technology Development Trends

5.1.1 Silicon Photonics Integration

Combining lasers with CMOS chips reduces cost and size for data centers and AI accelerators.

5.1.2 Power and Wavelength Expansion

There is demand for higher power in smaller form factors and broader spectral coverage for new applications.

5.2 Remaining Challenges

5.2.1 Thermal Management in Compact Systems

While standard cooling methods like water chillers and heat sinks are effective today, the push for smaller, portable, and higher-density laser systems introduces new thermal management challenges. Passive cooling and advanced materials may be required to maintain stability in space-limited or field-deployed applications.

As lasers become more powerful and integrated into compact devices, maintaining consistent thermal performance without increasing system complexity remains a frontier of engineering innovation.

5.2.2 Manufacturing Cost and Yield

Manufacturing high-performance semiconductor lasers requires costly processes such as epitaxial growth, wafer dicing, and precision packaging. Balancing high yield, tight wavelength control, and long-term reliability while reducing cost per unit remains a key industry challenge. Automation and process optimization are crucial for scalable production.

Conclusion

From quantum theory to global industry, semiconductor lasers have revolutionized how we use light.

They are at the heart of future tech—AI, LIDAR, and quantum computing all rely on their continued advancement.

---
