Why Is 808 nm Being Replaced by 885 / 888 nm?

A system upgrade from "can light up" to "can work stably for long time"

For years, 808 nm laser diodes were the default pump source for solid-state lasers. But something has changed.

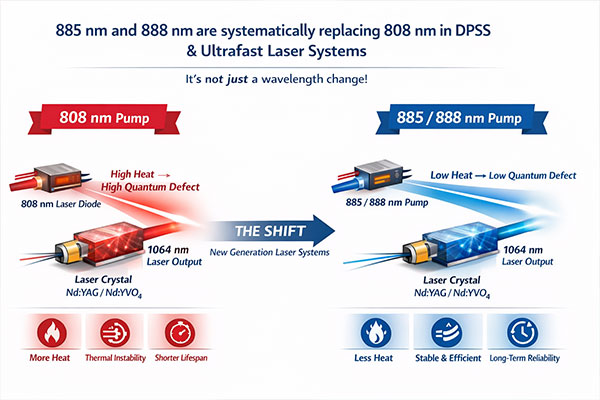

885 nm and 888 nm are systematically replacing 808 nm in new-generation DPSS and ultrafast laser systems—and it’s not just a wavelength change.

Engineers and researchers worldwide are now questioning the once-unshakable position of 808 nm.
This transition is closely tied to the evolution of laser diode pump source design, where wavelength selection directly impacts thermal behavior, efficiency, and long-term system stability.
For a complete technical overview, see our Laser Diode Pump Source Technology Hub.

Why Was 808 nm the Right Answer in the Past?

Back then, 808 nm wasn’t just usable—it was optimal.

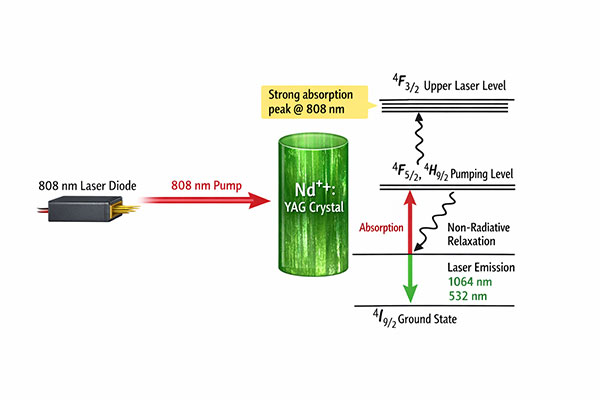

808 nm matched the strongest absorption peak of Nd³⁺ crystals and was easy to produce with mature laser diode technology.

Strong Points of 808 nm Pumping

• Nd:YAG and Nd:YVO₄ crystals absorb best at ~808 nm.
• Diodes were cost-effective, high power, and easy to manufacture.
• Ideal for low-power, continuous wave DPSS systems.
• Supported early industrial laser applications with simple, reliable designs.

Where’s the Problem with 808 nm? It’s in the Heat.

Today’s laser applications demand more power, longer lifespan, and higher stability. This is where 808 nm starts to fall short.

The issue is not usability—it’s quantum defect and internal heat.

Why 808 nm Generates More Heat

Parameter	808 nm Pump	885/888 nm Pump
Absorption Efficiency1	High	Moderate
Quantum Defect2	High	Low
Heat Load on Crystal	High	Lower
Long-Term Stability	Moderate	High

• 808 → 1064 nm leads to big energy gap → more heat.
• Heat causes thermal lensing, polarization issues, unstable mode fields.
• Crystal becomes sensitive to cooling, limits power scaling.

What Makes 885 / 888 nm Better? Less Heat, Not Just More Efficiency

This is not a "stronger pump" story—it’s about smarter pumping.

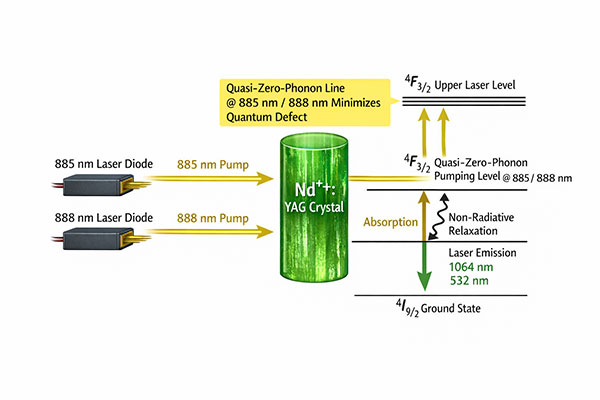

885 nm and 888 nm pump at the quasi-zero-phonon line of Nd³⁺, minimizing quantum defect².

System-Level Impact of Reduced Quantum Defect

• 🔻 Lower heat in crystal
• 🔻 Less thermal lensing³
• 🔺 Better beam quality
• 🔺 Higher long-term stability
• 🔺 More precise mode and polarization control

These are the key metrics for:

• Precision micromachining
• High-stability marking systems
• Ultrafast lasers (picosecond and femtosecond)

Why Is 888 nm⁴ Essential for Ultrafast Lasers?

Ultrafast systems expose 808 nm’s thermal problems even more severely.

Heat isn’t just a loss in efficiency—it can break the laser’s ability to work at all.

Ultrafast Laser Needs

• Locking cavity length must be ultra-stable
• Temperature drift ruins pulse timing
• Single hot spot disrupts mode-locking completely

That’s why:

• 888 nm⁴ is now the de facto standard for Yb/Nd-based ultrafast systems⁵
• 808 nm is considered obsolete in this field

Expect to see 888 nm⁴ in:

• High-end femtosecond & picosecond lasers
• Industrial ultrafast tools
• Precision research systems

Why Not a Full Replacement? It’s a Layered Transition.

808 nm is not dead. It still has its place.

The shift to 885 / 888 nm is application-driven, not total.

Where 808 nm Still Works

• Low-power DPSS
• Cost-sensitive equipment
• Teaching labs and basic industry
• Systems that don’t require long-time stability

Where 885 / 888 nm Is Becoming Standard

• Medium to high power lasers
• Continuous use scenarios
• Precision and ultrafast applications
• OEM laser modules for professional use

The Real Shift: From Pumping Power to Thermal Management

This is not just a wavelength story.

The industry is evolving from “how much you pump” to “how well you manage heat.”

Design Priorities Are Changing

Design Goal	808 nm Era	885/888 nm Era
Pump Power	High	Efficient & Cool
System Complexity	Tolerated	Minimized
Lifetime Stability	Optional	Mandatory
Mass Production Ready	Difficult	Engineered from start

885 / 888 nm isn’t just a better number—it reflects a better system design logic.

Vivlaser’s 888 nm Pump Source: Designed for Stability and Performance

As laser systems evolve, so do the demands on pump source precision and reliability. Vivlaser offers a range of 888 nm narrow-spectrum pump modules tailored for high-end DPSS and ultrafast laser applications.

Vivlaser’s 888 nm diode modules⁶ deliver locked-wavelength performance with <1 nm spectral width, enabling superior thermal management and long-term operational stability.

Core Specifications of Vivlaser 888 nm Pump Source

Feature	Specification
Center Wavelength	888 nm (±0.5 nm)
Spectral Width (FWHM)	<1 nm
Output Power Options	30W / 65W / 80W / 120W / 175W
Fiber Core Diameter	200 μm / 400 μm
Numerical Aperture (NA)	0.22
Reliability	Lifetime failure rate <1%
Customization	Available

Key Advantages

• 🔒 Wavelength-locked output ensures optimal absorption with Nd:YVO₄ crystals.
• ❄️ Efficient thermal design minimizes temperature drift.
• 🧩 Compact and customizable structure, ideal for integration into OEM systems.
• 🔁 Long-term consistency, perfect for 24/7 operation in high-precision environments.

Main Application Areas

• Picosecond / femtosecond ultrafast laser systems
• High-stability industrial DPSS lasers
• Precision micromachining and semiconductor processing
• Scientific research requiring long-term wavelength consistency⁷

As a trusted supplier to industry leaders like Han’s Laser and Inno Laser, Vivlaser’s 888 nm pump modules are widely deployed in professional-grade systems across Europe, Asia, and North America.

Conclusion

885/888 nm represents not just more power, but more control, consistency, and engineering maturity in solid-state laser systems.

---
