How to Select a Diode Laser Module for Handheld Beauty Devices

As handheld aesthetic devices continue evolving, an increasing number of manufacturers are exploring laser-based architectures for applications such as hair removal and skin treatment.

Compared with LED or IPL technologies, diode lasers offer precise wavelength control, higher energy efficiency, and stronger photothermal interaction with biological targets.

However, selecting an appropriate diode laser module for a compact handheld system requires careful consideration of several engineering factors.

Device developers must balance optical performance, thermal management, system size, and reliability within a highly constrained design environment.

Wavelength Selection

One of the most critical parameters when selecting a diode laser module is operating wavelength.

Different wavelengths interact with biological tissue in different ways depending on chromophore absorption characteristics.

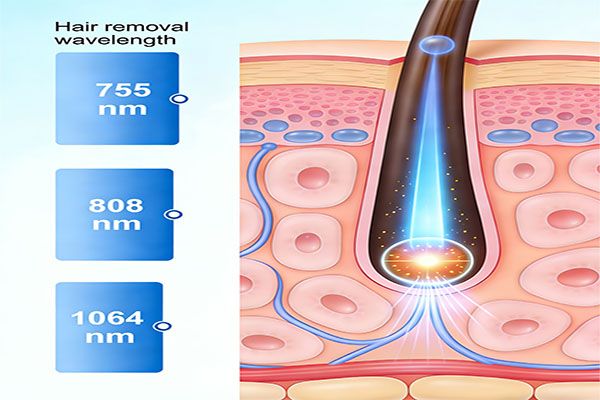

For hair removal applications, commonly used wavelengths include:

Wavelength	Target	Typical Use
755 nm	Melanin	Light skin hair removal
808 nm	Melanin	Broad skin type compatibility
1064 nm1	Melanin (lower absorption)	Darker skin types

Among these options, 808 nm diode lasers² are widely adopted because they provide a balance between melanin absorption and tissue penetration depth.

This allows effective follicle heating while reducing excessive epidermal absorption.

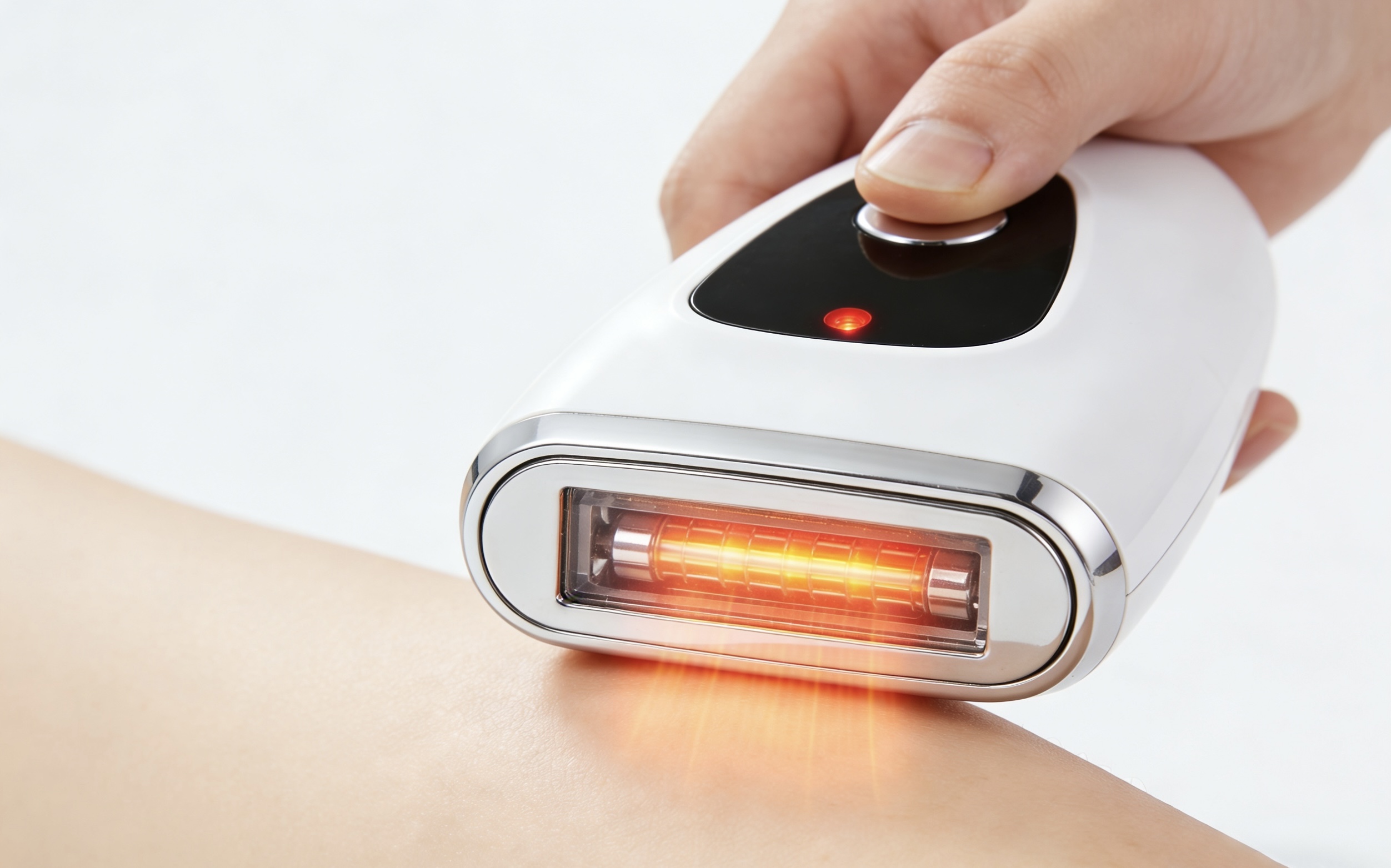

Optical Output Power

Output power directly influences the ability of the device to generate sufficient thermal energy within the target structure.

For hair removal devices, optical power must be high enough to raise follicle temperature to approximately 60–70°C³, which is typically required to disrupt hair growth.

However, increasing optical power also increases:

· thermal load

· system cooling requirements

· electrical consumption

For handheld systems, power selection therefore becomes a trade-off between treatment efficiency and device size.⁴

Thermal Management

Laser diodes generate significant heat within very small semiconductor junction areas.

Without adequate thermal dissipation, elevated temperatures can negatively affect:

· wavelength stability⁵

· optical efficiency

· module lifetime⁶

In handheld devices where cooling space is limited, selecting laser modules with high electro-optical efficiency ⁷and optimized thermal interfaces becomes particularly important.

Effective thermal design may involve:

· heat sinks

· thermoelectric cooling

· optimized airflow or conduction paths

Module Size and Integration

Compact system design is essential for handheld aesthetic devices.
Laser modules must fit within tight spatial constraints while allowing room for additional components such as:

· optics and beam shaping elements⁸

· driver electronics

· cooling structures

· battery systems

Modern semiconductor laser packaging technologies have enabled smaller module footprints⁹, making it increasingly feasible to integrate laser sources into portable devices.

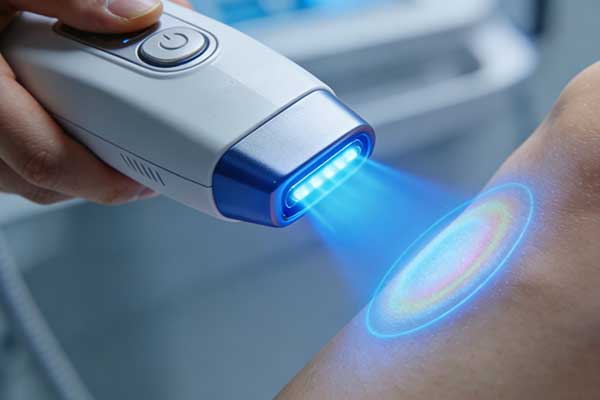

Beam Quality and Energy Distribution

Uniform energy delivery across the treatment area is essential for both effectiveness and safety.

Laser modules used in aesthetic systems often require additional optical components to shape and homogenize the beam.

Engineers should evaluate factors such as:

· beam divergence

· coupling efficiency¹⁰

· compatibility with beam shaping optics

These parameters influence how evenly energy is distributed across the treatment window.

Reliability and Lifetime

Consumer aesthetic devices are expected to operate reliably for thousands of treatment cycles over several years.

Laser module reliability therefore becomes a critical consideration.

Manufacturers should evaluate:

· rated operating lifetime

· thermal cycling tolerance

· power degradation characteristics

Reliable modules reduce long-term maintenance requirements and improve overall device stability.¹¹

The Importance of Compact Laser Module Design¹²

Advances in semiconductor laser technology have significantly improved the feasibility of integrating laser sources into handheld aesthetic devices.

Modern diode laser modules now offer:

· compact form factors

· improved electro-optical efficiency

· enhanced thermal performance

· stable long-term operation

Companies specializing in semiconductor laser technologies, such as Vivlaser, support device manufacturers by developing compact laser modules optimized for integration into portable aesthetic platforms.

Insight

Based on our collaboration with several well-known aesthetic device manufacturers, one practical lesson is that the best diode laser modules for handheld devices are not necessarily those with the highest power, but those designed for easy integration and stable operation in compact systems.

In real product development, factors such as thermal stability, optical uniformity, and packaging reliability often have a greater impact on device performance than raw specifications.

Modules that integrate optics and efficient thermal pathways help manufacturers shorten development cycles, reduce engineering risks, and bring portable aesthetic devices to market more quickly.
