What Type of Laser Is Used for Glass Internal Engraving?

Glass is transparent and difficult to process. Many laser types¹ cannot interact with it effectively. This creates confusion when selecting the right laser system for internal engraving.

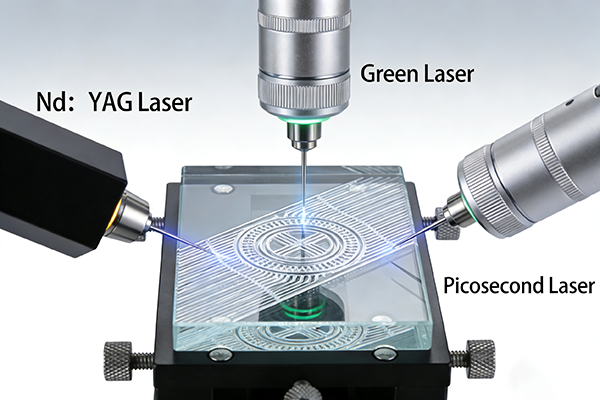

The most common lasers for glass internal engraving² are Nd:YAG (1064 nm), green lasers (532 nm), and picosecond lasers, all of which enable precise energy focusing and internal modification.

To choose the right system, you need to understand how each laser type interacts with glass and what role the pump source plays.

Why Is Nd:YAG (1064 nm) the Most Common Laser?

Many buyers struggle to balance cost, performance, and reliability. Choosing the wrong laser increases system risk.

Nd:YAG (1064 nm) lasers ³are widely used because they provide deep penetration, stable output, and compatibility with mature solid-state laser systems.

Deep Explanation

Basic Characteristics

Nd:YAG is a solid-state laser operating at 1064 nm. It is typically pumped by semiconductor laser diodes.

Parameter	Value
Wavelength	1064 nm
Laser type	Solid-state
Pump source	Semiconductor laser
Operation mode	Pulsed

Why It Works for Glass

Glass has low absorption at 1064 nm under normal conditions. This allows:

• Deep beam penetration
• Internal focusing without surface interaction

When focused, the energy density becomes high enough to trigger optical breakdown.

Advantages

• Mature and stable technology
• Lower system cost
• High reliability
• Suitable for industrial use

Limitations

• Larger heat-affected zone compared to ultrafast lasers⁴
• Lower precision than picosecond systems

Role of Pump Source (Important for You)

Nd:YAG lasers rely on diode pump sources. The performance of the pump source directly affects:

• Output stability
• Pulse energy consistency
• Thermal behavior

High-quality semiconductor pump sources⁵ with stable wavelength and strong thermal management are critical to ensure consistent engraving results.

Practical Insight

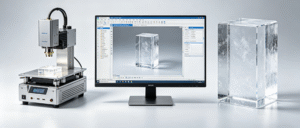

For most commercial 3D crystal engraving systems, Nd:YAG remains the best balance between cost and performance.

Engineering Check

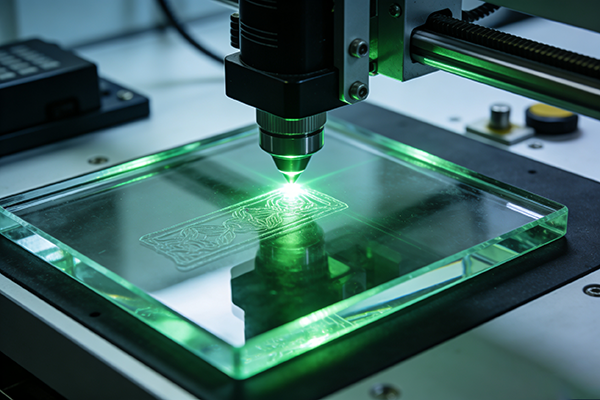

When Are Green Lasers Used for Glass Engraving?

Nd:YAG⁶ works well, but sometimes higher precision is required. This creates demand for alternative wavelengths.

Green lasers (typically 532 nm) ⁷ are used when higher absorption and finer feature resolution are needed in specific materials.

Deep Explanation

What Is a Green Laser?

Green lasers are usually generated by frequency doubling (SHG) of Nd:YAG lasers:

• Fundamental wavelength: 1064 nm
• Output wavelength: 532 nm

Interaction with Glass

Compared to 1064 nm:

• Slightly higher absorption
• Better interaction in some glass types
• Improved feature visibility

Advantages

• Smaller focal spot size
• Higher precision engraving
• Better contrast in some materials

Limitations

• Higher system complexity
• Lower efficiency due to frequency conversion
• Higher cost

Engineering Trade-off

Factor	Nd:YAG (1064 nm)	Green (532 nm)
Penetration	High	Medium
Precision	Medium	Higher
Cost	Lower	Higher

Role of Pump Source

Even green lasers depend on Nd:YAG systems. Therefore:

• Pump diode stability still matters
• Thermal control affects conversion efficiency
• Wavelength stability impacts output quality

This means pump source quality remains a core factor in system performance.

Practical Insight

Green lasers are used when visual quality and fine detail matter more than cost.

Engineering Check

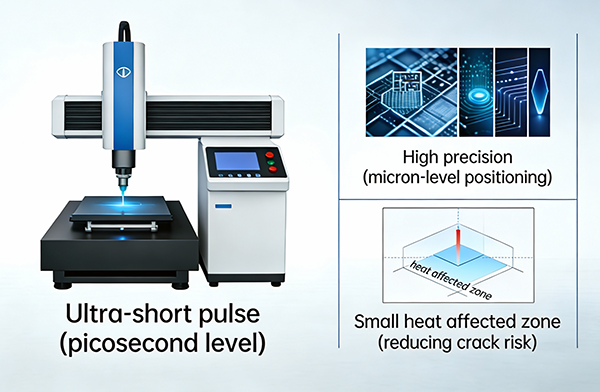

Why Are Picosecond Lasers Used for High-End Engraving?

Standard lasers may cause thermal damage. High-end applications require better precision and minimal heat effects.

Picosecond lasers⁸ are used because they deliver ultra-short pulses that reduce thermal impact and enable extremely precise micro-structuring.

Deep Explanation

What Is a Picosecond Laser?

A picosecond laser emits pulses in the range of:

• 10⁻¹² seconds

This creates extremely high peak power with minimal heat diffusion.

Interaction Mechanism

Compared to nanosecond lasers:

• Energy is delivered faster
• Heat does not spread
• Material modification is cleaner

Advantages

• Minimal heat-affected zone⁹
• Higher precision micro-point formation
• Better control of micro-fractures

Limitations

• High system cost
• Complex system design
• Lower throughput in some cases

Engineering Comparison

Feature	Nanosecond	Picosecond
Pulse duration	Longer	Ultra-short
Heat effect	Higher	Minimal
Precision	Medium	Very high

System Requirements

Picosecond systems require:

• High-end optics
• Precise synchronization
• Stable pump source

Even in ultrafast systems, diode pump sources are still critical for solid-state architectures.

Practical Insight

Picosecond lasers are ideal for:

• High-end optics
• Scientific research
• Precision photonics applications¹⁰

Engineering Check

My insight

The choice of laser for glass internal engraving¹¹ is not fundamentally about wavelength—it is about how stable and controllable the laser energy delivery is at the focal point over time.

In real industrial environments, engraving quality is determined by:

• Pulse-to-pulse energy consistency
• Thermal stability of the laser system
• Reliability of the semiconductor pump source

Because regardless of whether you use Nd:YAG, green, or picosecond lasers, they all rely on precise energy deposition to create uniform micro-points.

Bottom Line for B2B Buyers:
If the laser system cannot guarantee long-term energy stability (not just peak specs), you will see inconsistent engraving quality, especially in batch production—making the pump source and thermal design more critical than the laser type itself.
