Key Takeaways
3D laser crystal engraving creates internal structures using laser-induced micro-fracture points
The process builds volumetric images by stacking precisely controlled micro-points in 3D space
Laser stability, pulse energy control, and motion accuracy directly affect engraving quality
No surface damage ensures long-term durability and high-end product positioning
System cost is driven by laser source performance, optics precision, and motion control
Surface engraving damages materials and limits design depth. This reduces durability and value. Manufacturers need a better solution. 3D laser crystal engraving enables internal structures without affecting the surface.
3D laser crystal engraving works by focusing high-energy pulsed lasers inside transparent materials, inducing optical breakdown1 and forming localized micro-fracture points that build 3D images.
To understand its real value, you need to look at the physics, system design, and application differences.
What Is 3D Laser Crystal Engraving?
Traditional engraving cannot create internal structures. This limits product differentiation. High-end applications require more advanced solutions.
3D laser crystal engraving is a process that creates three-dimensional structures inside transparent materials by generating controlled micro-points2 at precise internal positions.
Deep Explanation
Core Definition

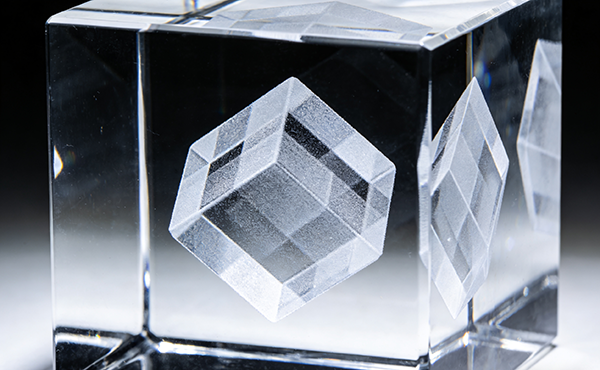

3D laser crystal engraving is an advanced subsurface laser process. It generates thousands or millions of micro-points inside materials such as optical glass3 or crystal.
Each micro-point represents a localized micro-fracture region created by laser-induced optical breakdown. These points act as voxels in a 3D structure.
Material Requirements
| Material | Suitability | Reason |
| K9 crystal | High | Excellent optical clarity |
| Optical glass | High | Stable internal structure |
| Acrylic | Medium | Lower resolution capability |
| Sapphire | High | High-end precision applications |
The material must allow laser transmission while enabling internal energy concentration.
3D Image Construction
The system workflow includes:
- 3D model input
- Data slicing into layers
- Point-by-point laser processing
The engraving system positions each micro-point in XYZ coordinates to form a complete 3D image.
Key System Components
| Component | Function |
| Laser source | Generates high-peak pulsed energy |
| Optical system | Focuses the beam internally |
| Motion system | Controls precise 3D positioning |
| Control software | Converts models into micro-point data |
Stable semiconductor laser systems are critical. Output stability, wavelength accuracy, and thermal control directly affect engraving consistency and resolution.
Practical Implications
- Enables true 3D internal visualization
- No surface damage or post-processing
- Supports complex geometries
- High repeatability for industrial use
Engineering Check
“3D laser crystal engraving builds images by stacking internal micro-points in three-dimensional space.”
Each laser pulse creates a micro-fracture point that contributes to the final 3D structure.
“3D laser crystal engraving removes material layer by layer like CNC machining.”
The process creates internal micro-fractures rather than removing material.
What Is the Working Principle Behind 3D Laser Crystal Engraving?
Many assume lasers simply burn material. This misunderstanding leads to poor system selection. Internal engraving relies on a different physical mechanism.
The process uses focused pulsed lasers to induce optical breakdown inside the material, generating plasma and forming localized micro-fracture points4.
Deep Explanation
Optical Breakdown Mechanism
The material is transparent under normal conditions. However, when laser intensity exceeds a threshold:
- Multiphoton absorption occurs
- Free electrons are generated
- Plasma forms at the focal point
This process is known as optical breakdown.
Micro-Fracture Formation
After plasma formation:
- Rapid expansion creates high pressure
- Localized structural damage occurs
- A visible micro-point forms
These micro-points scatter light, making the internal pattern visible.
Energy Control Parameters
| Parameter | Impact |
| Pulse energy | Controls micro-point size |
| Pulse duration | Affects precision |
| Focus depth | Defines 3D position |
| Repetition rate | Determines processing speed |
Role of Laser Stability
Laser instability leads to:
- Inconsistent micro-point size
- Distorted 3D images
- Reduced repeatability
Advanced laser systems with strong thermal management and stable output are essential for consistent performance.
Motion and Synchronization
The system requires:
- High-precision XYZ motion stages
- Real-time synchronization
- Accurate beam focusing
Any mismatch between laser pulses and positioning reduces engraving quality.
Practical Engineering Insight
The process depends on precise coordination between:
- Laser pulse timing
- Motion system control
- Software processing
This is why high-end systems deliver significantly better results.
Engineering Check
“Optical breakdown is required to create internal micro-fracture points inside transparent materials.”
Without sufficient energy density, the laser passes through the material without interaction.
“Continuous wave lasers are ideal for 3D crystal engraving.”
Short pulsed lasers are required to achieve high peak power for optical breakdown.
How Is 3D Engraving Different from 2D Subsurface Engraving?
Many buyers confuse 2D internal marking with 3D engraving. This leads to incorrect equipment choices and cost inefficiencies.

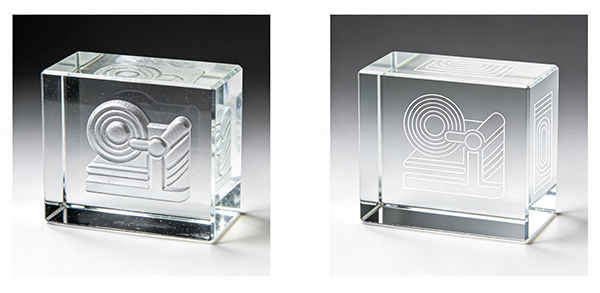

3D engraving builds volumetric images using layered micro-points, while 2D subsurface engraving creates patterns on a single internal plane.
Deep Explanation
Structural Differences
| Feature | 2D Subsurface | 3D Engraving |
| Depth control | Single plane | Multiple layers |
| Complexity | Low | High |
| Data input | Image | 3D model |
| Micro-point count | Low | Very high |
Data Processing Requirements
3D engraving requires:
- 3D model conversion5
- Layer slicing
- Point cloud generation
This increases computational and system complexity.
Equipment Differences
| Requirement | 2D | 3D |
| Motion precision | Medium | High |
| Software complexity | Low | High |
| Laser control | Moderate | Advanced |
Cost Drivers
3D systems require:
- Higher precision optics
- Advanced control systems
- Longer processing time
This increases total system cost.
Application Differences
2D engraving:
- Logos
- Text
- Simple patterns
3D engraving:
- Portraits
- Complex structures
- High-end decorative products
Engineering Decision Rule
Choose 3D engraving when depth, realism, and internal structure are required. Choose 2D for cost-sensitive applications.
Engineering Check
“3D engraving requires precise control of each micro-point in XYZ coordinates.”
Each point must be accurately positioned to form a correct 3D structure.
“2D and 3D subsurface engraving systems have the same technical requirements.”
3D systems require higher precision, more advanced software, and better synchronization.
What Are the Main Applications of 3D Laser Crystal Engraving?
Many companies see this technology as decorative only. This limits its commercial value. In reality, it supports multiple high-end applications.
3D laser crystal engraving is widely used in personalization, photonics, security marking, and scientific research.
Deep Explanation
Decorative and Commercial Applications
- 3D crystal gifts
- Awards and trophies
- Corporate branding products
Photonics and Optical Applications
- Internal optical marking
- Waveguide structuring6
- Photonics integration
These applications require high wavelength precision and stable laser output, which are critical in semiconductor laser systems.
Security Applications
- Internal serial numbers7
- Anti-counterfeiting marks
- Tamper-proof identification
Scientific Applications
- Micro-structure research
- Optical experiments8
- Data storage development
Buyer Value Analysis
For OEM manufacturers:
- Enables product differentiation
- Supports premium pricing
For research institutes:
- Improves experimental precision
- Ensures repeatability
Engineering Considerations
| Application | Key Requirement |
| Decorative | Visual clarity |
| Photonics | Precision and stability |
| Security | Permanence |
| Research | Repeatability |
Practical Insight
The real value is internal structuring capability. This allows engineers to design products that cannot be achieved with surface processing methods.
Engineering Check
“Internal laser engraving enables structures that are protected from external wear.”
The engraved features are inside the material and are not exposed to environmental damage.
“3D crystal engraving is only suitable for decorative applications.”
It is also widely used in photonics, security, and research fields.
My insight
3D laser crystal engraving9 is not fundamentally about creating 3D images—it is about maintaining precise spatial and energy consistency for every single micro-point in a volumetric space10.
In real production, the biggest challenge is ensuring that millions of internal points have:
- Identical size
- Accurate XYZ positioning
- Consistent brightness
This depends on tight synchronization between:
- Laser pulse energy stability
- Focus control across depth
- Motion system accuracy
Bottom Line for B2B Buyers:
If a system cannot guarantee point-to-point consistency in both energy and position11, the final 3D image will lose clarity, depth accuracy, and commercial value—regardless of software or design complexity.
