When laser meets metal, an intense and complex interaction begins. Among all phenomena, the “keyhole effect” plays a critical role in shaping the depth, stability, and quality of deep penetration welding.
The keyhole effect enables concentrated laser energy absorption and is essential for deep and narrow welds in high-power laser processing.
Laser welding is not just melting metal — it’s about how energy transforms into force, pressure, and flow. Let’s explore how the keyhole effect leads this transformation.

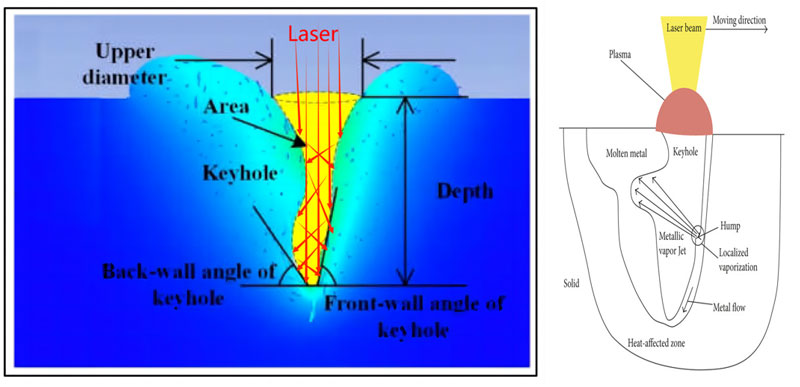

What is a keyhole1 and how does it form?
When laser power density exceeds 10^6 W/cm², material at the laser spot surface starts to melt and vaporize rapidly. The vaporized material creates a high-pressure recoil force, strong enough to push molten metal aside and form a narrow depression — this is the start of a keyhole1.
A keyhole1 forms when vapor recoil pressure2 surpasses surface tension and gravity, pushing molten metal outward and creating a stable, narrow cavity that traps laser energy.

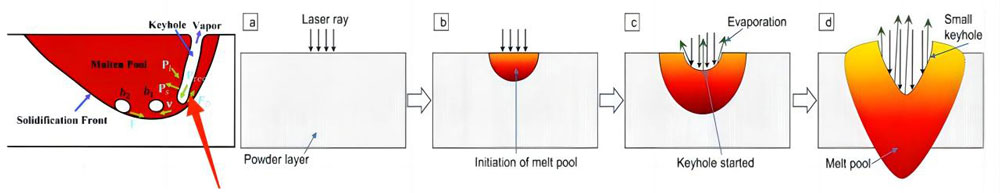

The Formation and Growth Process
-
As vaporization continues, laser penetrates deeper, directly heating the bottom of the cavity.
-
Once pressures inside the cavity balance (vapor pressure vs. surface tension + gravity), the keyhole1 reaches a stable depth.

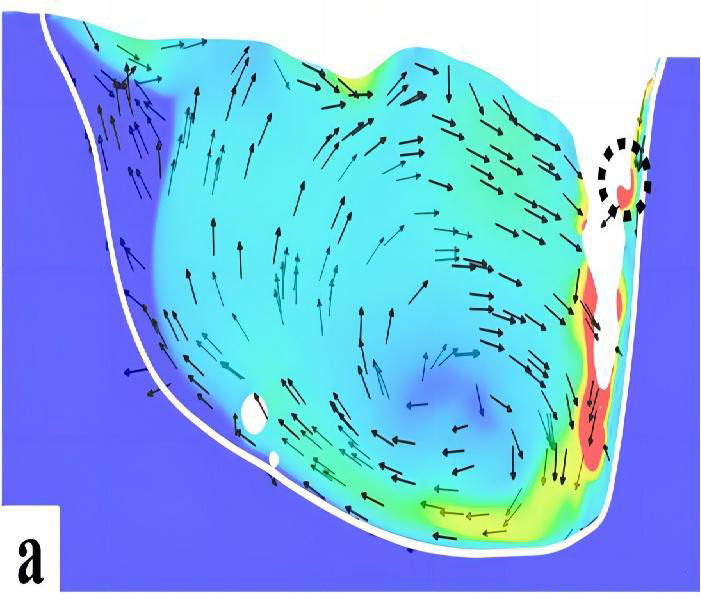

The shape of a moving keyhole1 is typically an inverted triangle, with the front side slightly curved backward and the rear significantly slanted. Molten metal flows from the front to the rear, forming vortices and freezing behind the cavity. This dynamic is crucial in shaping deep-penetration welds.
How does the keyhole improve laser energy absorption3?
Before a keyhole forms, laser energy enters the material mainly through surface conduction. This limits penetration depth and absorption rate (only 25–45%).
Once a keyhole is formed, laser energy is absorbed by multiple reflections inside the cavity, increasing absorption to over 60–90%.
Fresnel Absorption
The primary absorption mechanism is Fresnel reflection4 — laser beams reflect multiple times within the keyhole walls, each time losing some energy to the material. This effect is especially critical for highly reflective materials like aluminum, silver, or copper.
| Material | Absorption Rate | Energy Coupling Stability |
|---|---|---|
| Steel | High | Stable keyhole |
| Copper | Low | Unstable, shallow welds |
| Aluminum | Very Low | Frequent porosity |
Laser welding of reflective metals often suffers from energy instability at the keyhole bottom, causing porosity or inconsistent weld depth.
Inverse Bremsstrahlung Absorption
Apart from the walls, energy is also absorbed by the plasma within the keyhole. Plasma absorbs laser through inverse Bremsstrahlung radiation and then transfers heat to surrounding metal via convection and radiation.
While this helps sustain the keyhole, most plasma energy release happens at the top of the cavity, forming a “goblet”-shaped keyhole that is wide but shallow. This is less effective for deep, narrow welds.
What forces keep the keyhole stable?
Inside the keyhole, multiple forces compete:
-
Supporting: Vapor recoil pressure
-
Opposing: Surface tension, hydrostatic pressure, fluid dynamic resistance
The keyhole remains stable only when vapor pressure balances surface and gravitational forces; otherwise, collapse, porosity, or spatter occurs.
The complex dynamics between laser energy, metal evaporation, and fluid movement create constant pressure fluctuations. These changes affect plasma formation, which in turn blocks, bends, or absorbs laser beams unpredictably — making keyhole depth and shape highly unstable.
Why is keyhole instability a problem?
When keyhole volume and pressure fluctuate too fast, welds become inconsistent — showing wave-like patterns, pores, or incomplete fusion.
Instability leads to jagged weld depths, inconsistent fusion, and visual defects, especially in high-reflective or fast-moving welds.
Root Causes
-
Plasma fluctuation alters beam absorption.
-
Molten metal dynamics change cavity volume and shape.
-
Inconsistent laser-plasma interaction results in irregular heating zones.
The figure above shows real-time keyhole depth oscillations and the resulting uneven weld cross-section.
How can Vivlaser solutions stabilize the keyhole?
To improve welding quality, the laser source must offer precise beam quality, high power density, and narrow spectral width. Vivlaser specializes in these capabilities.
Vivlaser high-power semiconductor lasers provide locked-wavelength, narrow spectrum output for stable, deep, and clean welds.
Matching Vivlaser Technologies
1. Narrow-Spectrum Pump Lasers5
Vivlaser’s 878.6nm, 885nm, and 888nm pump sources are ideal for solid-state laser pumping and deep-penetration laser welding. Narrow spectrum ensures stable energy input and helps suppress plasma fluctuations.
2. High-Power Fiber-Coupled Modules6
Vivlaser’s 120W/175W and kilowatt-level fiber-coupled modules deliver energy efficiently into small-core fibers, maintaining high beam quality critical for keyhole depth consistency.
3. Customizable Beam Structures
Through ring-mode design and composite beams, Vivlaser supports energy distribution that promotes wider and more stable keyhole openings, reducing internal turbulence.
| Vivlaser Feature | Keyhole Benefit |
|---|---|
| Narrow wavelength lock | Consistent depth & stable coupling |
| High beam quality | Deep and clean weld penetration |
| Ring-mode customization | Suppress porosity and spatter |
| Fast thermal management | Prevent keyhole collapse |
| OEM support | Optimized for customer applications |
Conclusion
The keyhole effect transforms how lasers interact with metals. Vivlaser’s advanced semiconductor laser modules are engineered to maximize the efficiency and stability of this process in high-demand industrial environments.
-
