How Does Laser Core Diameter Affect Welding Quality?

Laser core diameter plays a crucial role in determining beam profile, energy density, and ultimately the quality, efficiency, and stability of a laser weld.

Smaller cores generate higher power density and deeper penetration; larger cores produce wider welds with broader heat-affected zones.

If you’re evaluating laser welding systems, this article will help you understand how beam diameter influences absorption mechanisms, heat conduction, and process outcomes.

What Is the Principle Behind Laser Welding?

Laser welding is fundamentally driven by thermal transfer and material absorption.

Core diameter controls power density, which determines whether the process enters heat conduction welding or keyhole welding mode.

Thermal Behavior: Conduction vs. Keyhole Welding

Heat Conduction Welding¹

• Typical power density: 10^4 to 10^6 W/cm²

• Energy absorbed at surface; heat spreads by conduction

• Shallow penetration, wide welds

• Ideal for thin sheets or surface remelting

Keyhole Welding

• Power density: >10^7 W/cm²

• Laser beam creates a vaporized keyhole with multiple internal reflections

• High absorption, deep penetration, high aspect ratio

• Suitable for high-speed welding or reflective materials

Power Density² Formula

Power density = Laser Power / Focused Spot Area

• Smaller core → smaller spot → higher power density

• Higher density enables deeper and faster welds

How Do Different Core Sizes Impact Welding Results?

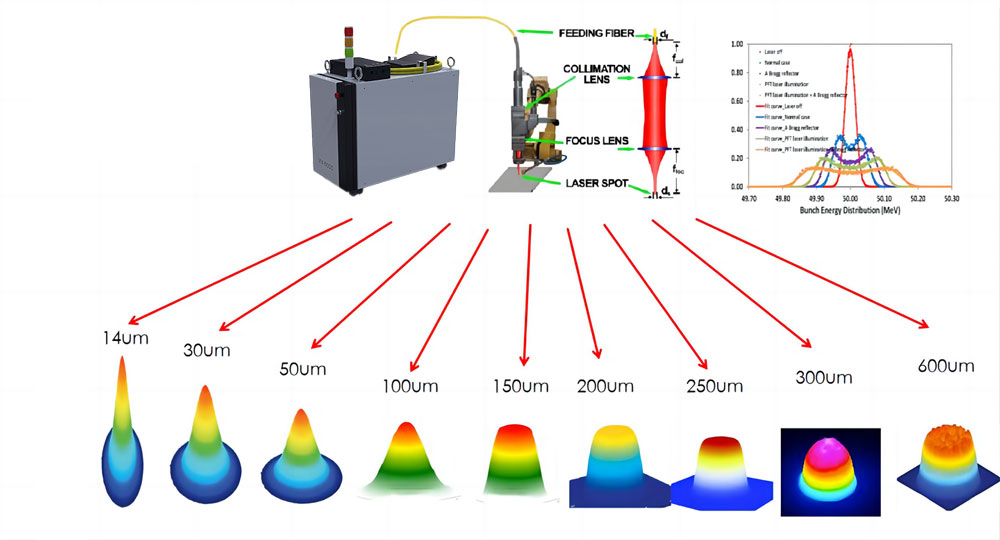

Laser beam diameter significantly alters energy concentration, heat dispersion, and metallurgical structures.

A 14μm laser core³ delivers over 50× the power density of a 100μm core⁴, resulting in vastly different weld morphologies.

Microstructural Comparison: Which Core Cuts Deeper?

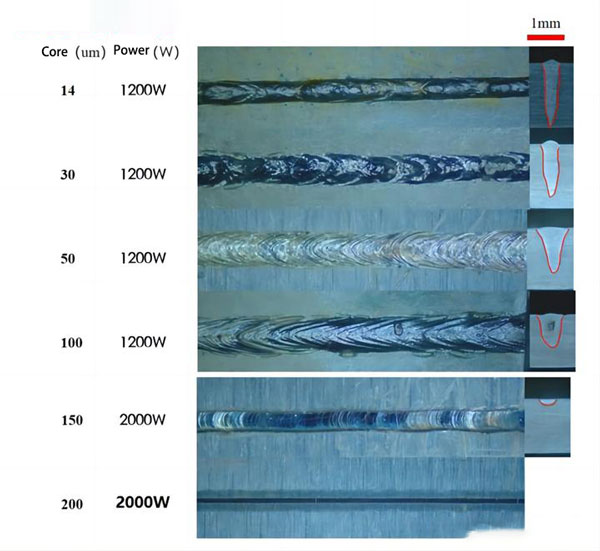

In tests using identical parameters (150 mm/s speed, focused position, 2mm aluminum), micrographs show:

Smaller cores create deeper welds but rougher surfaces; larger cores yield flatter seams but shallower penetration.

Observations:

• Small-core lasers quickly generate keyholes in aluminum and copper

• Large-core lasers require higher power to achieve similar depth

• Small cores are ideal for fast welding; large cores for surface aesthetics

Application Scenarios: Which Core for What Task?

Selecting the right core diameter depends on material reflectivity, process speed, and required depth.

Smaller cores are sharper and better for penetration; larger cores offer smoother surface treatment.

Typical Use Cases for Small Cores (≤100μm)

Application	Materials	Key Benefits
High-speed lap welding5	Copper, nickel, SS	Fast keyhole welding, minimal HAZ
Medical laser pumping	Nd:YAG, Nd:YVO₄	Efficient coupling, compact structure
Precision welding	Thin steel sheets	Controlled molten pool, low distortion

Typical Use Cases for Large Cores (>100μm)

Application	Process Type	Key Benefits
Laser cladding6	Surface modification	Wide spot, broad heating, higher throughput
Hybrid laser welding	Preheating + depth	Low spatter, smooth welds
Annealing/tempering	Heat treatment	Uniform beam profile, stable results
