In many industrial processes, traditional heating methods like open flames or hot air are unsuitable due to safety, cleanliness, or control issues.
The VIV-6000 area laser heating source by Vivlaser is engineered precisely to overcome these challenges.
Rather than welding or cutting, this laser specializes in heating—where precise thermal distribution, rapid temperature control, and easy system integration are critical.
It’s Not Just a Laser—It’s a Purpose-Built Thermal Light Source
The VIV-6000 is a 6000W rectangular area beam laser, designed specifically for industrial-scale heating tasks. Unlike typical focused lasers, it delivers a diffused and uniform beam, making it ideal for applications demanding consistent temperature profiles and controlled thermal gradients.
Key Features:
- 6000W high power output for demanding, high-speed production lines.
- Uniform area beam output for stable and even heating results.
- Linear power control (10%–100%) to match specific process requirements.
- Non-contact heating minimizes contamination and mechanical wear.
- Customizable spot size and shape (rectangular or circular).
- 8-meter fiber delivery enables flexible, multi-point integration.
Adaptable Across Various Thermal Processes
VIV-6000 is not confined to a single application. It’s widely adopted across industries for processes involving melting, curing, activation, preheating, and desorption.
Our customers, spanning multiple advanced manufacturing sectors, all share a need for clean, stable, and precisely controllable heating alternatives.
Here are common scenarios where VIV-6000 excels:
- Functional coatings requiring uniform heat activation.
- Thermal activation or preheating of coated surfaces without damage.
- Laminated interfaces that need controlled bonding.
- High-value components undergoing localized desorption or repair.
With its customizability, the VIV-6000 supports both large-area uniform heating and complex, irregular-shaped process zones.
Why Use Laser Heating Instead of Traditional Methods?
Conventional heating sources—hot air, heating rods, infrared—struggle with long startup times, low efficiency, surface contamination, and poor thermal precision. Laser heating, by contrast, uses light to transfer heat, offering unmatched advantages:
| Comparison Criteria | Hot Air / Rods | Infrared Heating | VIV-6000 Area Laser |
|---|---|---|---|
| Startup Time | Slow | Moderate | Instant (seconds) |
| Heat Uniformity | Uneven | Stronger edge heat | Highly uniform |
| Temperature Control | Difficult | Unstable | Precisely adjustable |
| Cleanliness | Risk of carbonization | Moderate | Clean, non-contact |
| Equipment Size | Bulky | Medium | Compact, modular |
For processes where the heat-affected zone must be controlled with millimeter precision—and where materials are sensitive to carbonization or deformation—laser heating is often the only viable option.

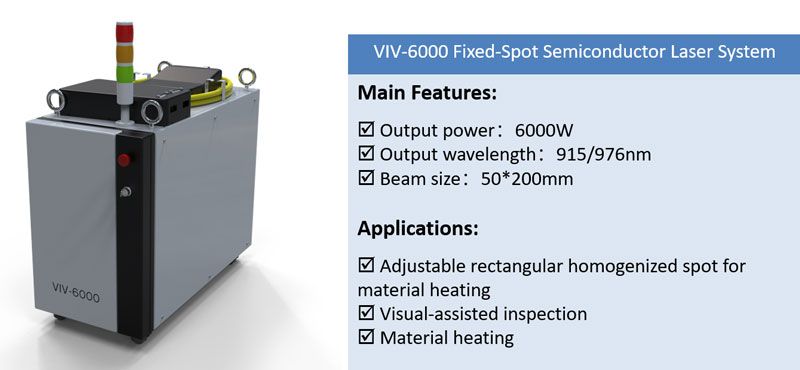

VIV-6000 Technical Specifications
| Specification | Value |
|---|---|
| Output Power | 6000W |
| Beam Size | 200mm × 50mm |
| Working Distance | 600mm |
| Power Adjustment | 10%–100% linear control |
| Fiber Length | 8 meters |
| Power Consumption | 12,000W |
| Input Voltage | ~220V / 50Hz |
| Cooling Recommendation | ≥6000W (min. 2HP chiller) |
| Water Flow Requirement | ≥20 L/min |
| Water Temp Setting | 25℃ |
| Operating Temperature | 10–40℃ |
| Storage Temperature | 0–60℃ |
⚠️ Data based on 25°C ambient temperature. Output power is measured at the fiber end.
Ideal Applications for the VIV-6000
The VIV-6000 is now widely used in industries requiring accurate thermal control and high-efficiency heat transfer. Suitable applications include:
- Activation or softening of functional coatings.
- Thermal bonding at laminated interface layers.
- Uniform curing of heat-sensitive adhesives.
- Carbon-free heating of delicate materials.
- Localized desorption or precision thermal repair.
This laser heating platform not only enhances processing accuracy but also significantly improves consistency, safety, and control across production lines.
Conclusion
The VIV-6000 is not a one-size-fits-all laser—it’s a tailored laser-based thermal platform designed for demanding industrial heat applications. Whether or not you need 6000W, you definitely need a clean, contactless, and controllable heating solution.
To see if the VIV-6000 is right for your process, contact Shenzhen Vivlaser Technology Co., Ltd. for testing services, application guidance, or custom development.
