What Is Subsurface Laser Engraving? (Complete Guide)

Material marking often damages surfaces. Scratches, wear, and fading reduce product value. This creates reliability issues. Subsurface laser engraving solves this by writing inside materials instead of on them.

Subsurface laser engraving is a process where a focused laser creates micro-fractures inside transparent materials like glass or crystal, forming 2D or 3D patterns without affecting the surface.

This guide explains how it works, how it compares to surface engraving, and where it is used in real applications.

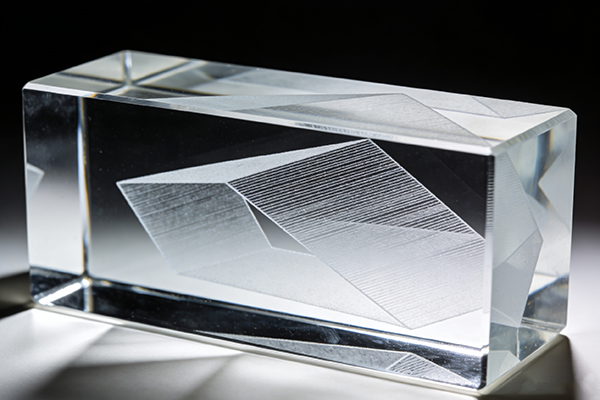

What Is Subsurface Laser Engraving?

Surface damage reduces product lifespan. Traditional engraving cannot protect internal structures. This creates limitations for high-end applications.

Subsurface laser engraving is a non-contact process that focuses laser energy inside transparent materials to create internal micro-cracks, forming visible patterns without altering the outer surface.

Deep Explanation

Definition and Core Concept

Subsurface laser engraving, also called internal laser engraving¹, uses a high-intensity pulsed laser beam to modify the internal structure of a transparent material. The laser is focused below the surface, not on it.

The material must be transparent to the laser wavelength². Common materials include:

Material Type	Suitability	Notes
Optical glass	High	Most common
Crystal	High	Used for 3D engraving
Acrylic	Medium	Lower precision
Sapphire	High	High-end applications

How the Laser Interacts with Material

The laser passes through the material without interaction until it reaches the focal point. At that point:

• Energy density becomes extremely high
• Localized breakdown occurs
• Micro-fractures (micro-explosions) form

These micro-points scatter light, making the pattern visible.

Key Engineering Parameters

Parameter	Impact
Pulse energy	Controls fracture size
Pulse duration	Affects precision
Repetition rate	Determines speed
Focus accuracy	Defines resolution

A stable semiconductor laser source³ is critical for consistent energy delivery. High electro-optical efficiency and thermal management directly impact engraving quality, as seen in advanced laser systems.

Practical Implications

• No surface damage means no post-processing
• Internal structures are protected from wear
• Complex 3D designs become possible
• High precision requires advanced optics and control systems

Engineering Check

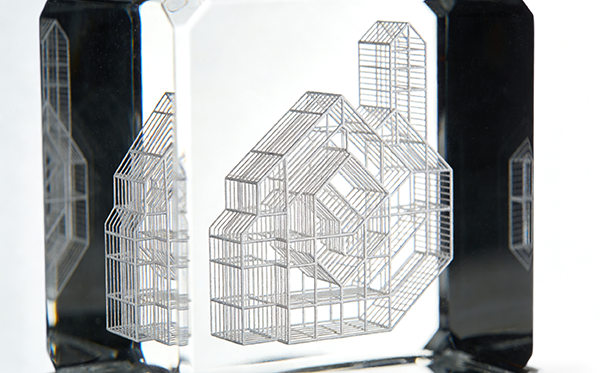

What Is the Working Principle of Subsurface Laser Engraving?

Many engineers assume engraving always removes material. But internal engraving does not remove surface layers. This creates confusion about the mechanism.

The principle is based on focusing a pulsed laser inside transparent material to generate localized micro-fractures through optical breakdown.

Deep Explanation

Optical Breakdown Mechanism

The key mechanism is nonlinear optical absorption⁴. Even if the material is transparent, high-intensity laser pulses can cause:

• Multiphoton absorption
• Avalanche ionization
• Plasma formation

This leads to a micro-explosion⁵ at the focal point.

Micro-Fracture Formation

After plasma formation:

1. Rapid expansion occurs
2. Local pressure increases
3. Micro-cracks form

These cracks scatter light, making them visible.

Energy Distribution Model

Stage	Description
Transmission	Laser passes through material
Focusing	Energy concentrates at focal point
Breakdown	Plasma forms
Fracture	Micro-cracks appear

Role of Laser Source

The laser source must provide:

• High peak power
• Short pulse duration
• Stable wavelength

Semiconductor laser systems with strong thermal management⁶ ensure consistent pulse energy and long-term reliability, which is critical in industrial applications.

System Design Considerations

• Beam quality (M² factor) affects focus precision
• Optical alignment determines accuracy
• Cooling systems maintain stability

Poor thermal control leads to wavelength drift, which reduces engraving consistency.

Practical Engineering Insight

The process is not about “burning” material. It is about controlled internal structural modification. This is why:

• Surface remains smooth
• Internal patterns are permanent
• No debris is generated

Engineering Check

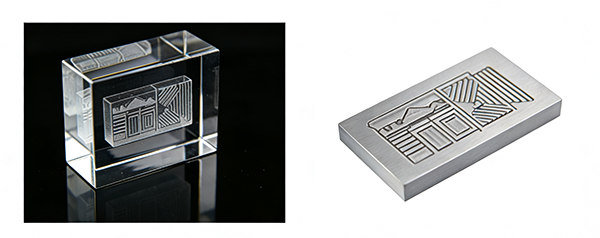

How Does Subsurface Engraving Compare to Surface Engraving?

Many buyers choose engraving methods based on cost alone. But ignoring performance differences leads to poor product design.

Subsurface engraving creates internal structures without surface damage, while surface engraving removes or modifies material on the exterior.

Deep Explanation

Process Differences

Feature	Subsurface Engraving	Surface Engraving
Location	Inside material	On surface
Damage	No surface damage	Surface alteration
Durability	High	Medium
Material requirement	Transparent only	Almost all materials

Performance Comparison

• Subsurface engraving is more durable
• Surface engraving is more flexible
• Subsurface requires higher precision systems

Cost Drivers

Factor	Subsurface	Surface
Equipment cost	High	Medium
Process complexity	High	Low
Maintenance	Medium	Low

Subsurface systems require:

• Precision optics
• Stable laser sources
• Advanced motion control

Application Trade-offs

Subsurface engraving is ideal when:

• Long-term durability is required
• Aesthetic quality matters
• Internal marking is needed

Surface engraving is better when:

• Cost is critical
• Materials are opaque
• High speed is required

Engineering Decision Rule

If your application requires:

• Wear resistance → choose subsurface
• Material flexibility → choose surface

Engineering Check

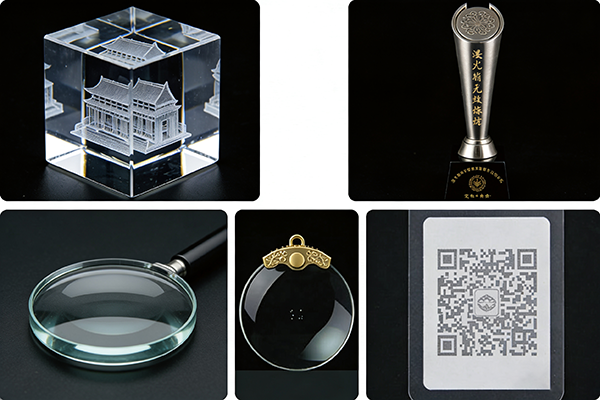

What Are the Main Applications of Subsurface Laser Engraving?

Many companies underuse laser capabilities. They treat engraving as simple marking. This limits product innovation.

Subsurface laser engraving is used in optics, personalization, security marking, data storage, and high-end display manufacturing.

Deep Explanation

Key Application Areas

1. Decorative and Personalization

• 3D crystal engraving⁷
• Awards and souvenirs
• Customized products

2. Optical and Photonics Components

• Internal marking in lenses⁸
• Waveguide structuring
• Photonics integration

High precision lasers are essential for these applications, especially in photonics systems where wavelength accuracy matters.

3. Security and Anti-Counterfeiting

• Internal serial numbers
• Hidden authentication marks
• Tamper-proof identification

4. Data Storage and Micro-Structuring

• Multi-layer data encoding⁹
• Internal micro-structures

5. Medical and Scientific Use

• Biocompatible marking¹⁰
• Research applications

Why It Matters for Buyers

For OEMs and system integrators:

• Enables product differentiation
• Increases product lifetime
• Supports high-end market positioning

For research institutes:

• Enables precise internal structuring
• Supports experimental repeatability

Engineering Considerations by Application

Application	Key Requirement
Optics	High wavelength stability
Medical	Clean, no contamination
Industrial	High reliability
Research	Precision and repeatability

Practical Insight

The value is not just engraving. It is enabling new product functions. Internal structuring opens new design possibilities that surface methods cannot achieve.

Engineering Check

My insight

Subsurface laser engraving is not limited by laser power—it is defined by how precisely and consistently the laser energy is controlled at the focal point inside the material.

In real industrial applications, the biggest challenge is not achieving optical breakdown, but maintaining stable micro-fracture size and position across millions of points. This depends on:

• Pulse energy stability
• Beam quality and focusing accuracy
• Thermal control of the laser source

Bottom Line for B2B Buyers:
If a system cannot guarantee repeatable internal energy density, it cannot deliver consistent engraving quality—no matter how high the advertised power is.
