What Are the Common Applications of 405 nm Laser 3D Printing?

Many industries need parts with extremely fine details, but traditional manufacturing methods struggle with small geometries and complex internal structures. This limits design flexibility.

405 nm laser 3D printing is widely used in industries that require high resolution and smooth surface quality, including dental models, jewelry casting patterns, microfluidic devices¹, and rapid prototyping.

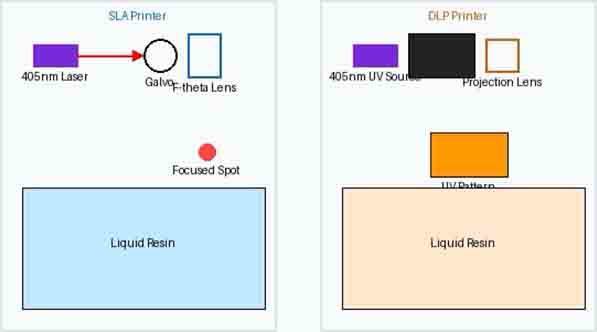

Because 405 nm wavelengths match photopolymer chemistry and allow precise optical focusing, they enable reliable high-resolution SLA printing across a wide range of professional applications.

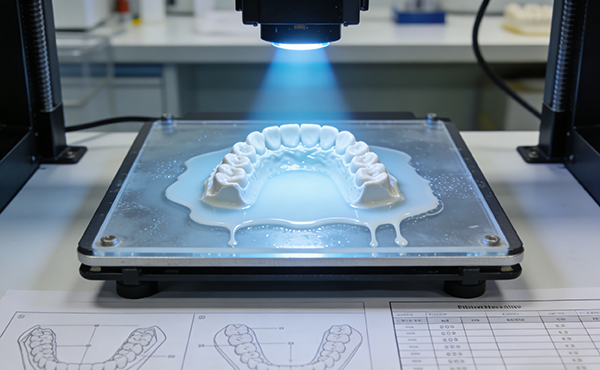

Why Is 405 nm SLA Printing Used for Dental Models?

Dental labs must produce highly accurate models quickly, but traditional mold techniques are slow and difficult to scale.

405 nm SLA printing enables fast and precise dental model production with excellent surface quality and dimensional accuracy.

Deep Explanation

Digital dentistry requires precision and speed

Modern dental workflows increasingly rely on digital scanning and computer-aided manufacturing². Intraoral scanners capture the geometry of a patient’s teeth and gums, and the data is converted into printable 3D models.

SLA printers using 405 nm lasers are ideal for this workflow because they produce high-resolution layers with smooth surfaces. Dental models must accurately reproduce tooth margins, occlusal surfaces, and small anatomical features³. Even minor errors can affect the fit of crowns, aligners, or surgical guides.

High resolution supports orthodontic applications

Orthodontic treatment planning often requires a sequence of models that represent progressive tooth movement. Each model must be dimensionally accurate because it serves as a reference for aligner manufacturing.

405 nm printers can produce thin layers and fine details, which is essential for creating clear aligner molds and orthodontic study models.

Surface quality and material compatibility

Photopolymer resins used in dental printing are formulated to respond efficiently to 405 nm light. These materials can produce models with smooth surfaces and consistent curing behavior.

Dental Application	Requirement
Orthodontic models	High dimensional accuracy
Crown and bridge models	Precise margins
Surgical guides	Reliable geometry
Aligner molds	Smooth surface finish

Because dental laboratories often print dozens or hundreds of models per day, the stability and repeatability of 405 nm systems⁴ are critical for production workflows.

Engineering Check

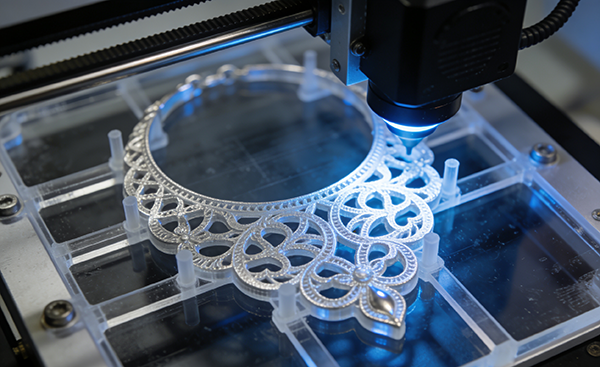

Why Is 405 nm Printing Popular in Jewelry Manufacturing?

Jewelry design often involves extremely small features that are difficult to machine or cast directly.

405 nm SLA printing produces highly detailed casting patterns for jewelry manufacturing.

Deep Explanation

Fine features require high optical resolution

Jewelry pieces often contain intricate patterns, filigree structures, and very thin walls. These details are difficult to produce using traditional subtractive manufacturing methods.

SLA printers operating at 405 nm can create small feature sizes because the wavelength allows precise focusing and accurate photopolymerization.

Wax-like resins enable investment casting⁵

In many jewelry workflows, the printed part is not the final product. Instead, the printer produces a sacrificial pattern that is used in investment casting.

Specialized photopolymer resins⁶ are designed to burn out cleanly during the casting process. After printing, the pattern is embedded in a ceramic mold, and molten metal replaces the burned-out resin.

Rapid design iteration

Jewelry designers frequently experiment with shapes and patterns. Traditional mold fabrication can take days or weeks, but SLA printing allows designers to evaluate prototypes quickly.

Jewelry Workflow Step	Role of SLA Printing
Design modeling	Create digital CAD designs
Prototype printing	Produce high-detail patterns
Investment casting	Replace pattern with metal
Final finishing	Polish and assemble

Because of the small feature sizes involved, the optical precision provided by 405 nm systems is especially valuable in jewelry manufacturing.

Engineering Check

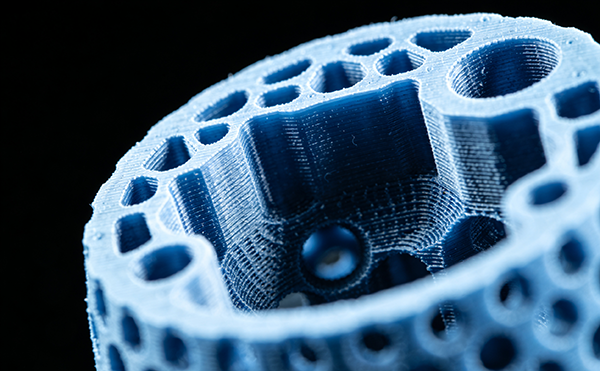

How Is 405 nm Printing Used in Microfluidics?

Microfluidic devices contain microscopic channels that control fluid movement, and these structures require extremely precise fabrication.

405 nm SLA printing can produce micro-scale channels⁷ suitable for research and biomedical microfluidic devices.

Deep Explanation

Microchannels require micron-level precision

Microfluidic systems manipulate very small volumes of fluid through networks of tiny channels. These channels may only be tens to hundreds of micrometers wide.

Traditional machining methods struggle to create these structures efficiently. SLA printing offers a flexible alternative because the laser can define small features within liquid resin.

Rapid prototyping for research labs

Researchers often design and test many different channel geometries during experiments. SLA printing allows scientists to iterate rapidly without waiting for custom microfabrication processes.

This flexibility is especially useful in fields such as:

• biomedical diagnostics
• chemical analysis
• lab-on-a-chip systems⁸
• drug testing platforms

Optical transparency and material considerations

Some photopolymer resins used in microfluidic devices are formulated to be optically transparent. This allows researchers to observe fluid flow within the printed channels.

Microfluidic Requirement	SLA Advantage
Small channel dimensions	High optical resolution
Complex internal structures	Layer-by-layer fabrication
Rapid design iteration	Fast prototyping
Transparent materials	Optical observation

Because channel accuracy directly affects fluid behavior, high-resolution printing is essential for reliable microfluidic performance.

Engineering Check

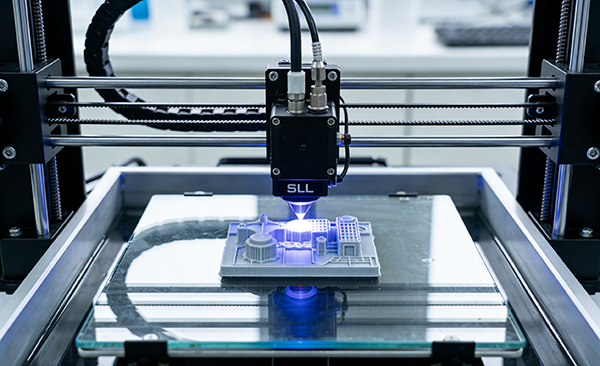

Why Is 405 nm Printing Important for Rapid Prototyping?

Engineers often need to evaluate designs quickly before committing to expensive tooling.

405 nm SLA printing⁹ enables fast production of detailed prototypes with good surface quality and dimensional accuracy.

Deep Explanation

Accelerating product development

Rapid prototyping allows engineers to test designs early in the development process. Instead of waiting for machined parts, designers can print prototypes within hours.

SLA printing produces smooth surfaces and fine details, which makes prototypes suitable for functional evaluation and design verification.

Complex geometry without tooling

Traditional manufacturing often requires specialized tooling or molds. These tools can be expensive and slow to produce. SLA printing eliminates this requirement because the geometry is created directly from digital models.

This allows engineers to test complex shapes such as internal channels, lattice structures, or ergonomic surfaces.

Iterative design workflow

Modern product development often follows an iterative cycle:

1. Design
2. Prototype
3. Test
4. Improve

405 nm SLA printing supports this cycle by producing accurate prototypes quickly.

Prototyping Goal	SLA Advantage
Fast design validation	Short build times
High detail accuracy	Fine optical resolution
Smooth surfaces	Reduced post-processing
Complex geometry	No tooling required

Because prototypes often need to resemble final products closely, the high resolution provided by 405 nm systems is valuable in engineering workflows.

Engineering Check

My Insight

From an engineering perspective, the success of 405 nm laser 3D printing comes from its balance between photochemistry and optical engineering. The wavelength matches the absorption spectrum of common photopolymer resins¹⁰, while semiconductor diode lasers provide compact and stable light sources. This combination enables reliable high-resolution SLA printing for industries such as dentistry, jewelry manufacturing, microfluidics, and rapid product prototyping.

1. Microfluidic devices require extremely precise microchannels that traditional manufacturing can’t achieve – learn how 405 nm laser systems enable this critical biomedical technology. ↩︎
2. Understanding this technology reveals how modern dentistry achieves unprecedented precision and efficiency in creating dental restorations and aligners. ↩︎
3. Learn how precise anatomical reproduction directly impacts the success rate and longevity of crowns, bridges, and other dental prosthetics. ↩︎
4. Explore the engineering behind consistent dental model production that meets clinical standards across hundreds of daily prints. ↩︎
5. Understanding investment casting techniques will help you master the complete jewelry production workflow and achieve higher quality metal parts from your printed patterns. ↩︎
6. Choosing the right resin is critical for clean burnout and successful metal casting, directly impacting the quality of your final jewelry pieces. ↩︎
7. Understanding different fabrication methods helps researchers choose the most effective approach for their specific microfluidic applications and experimental needs. ↩︎
8. Exploring current developments in lab-on-a-chip systems reveals cutting-edge applications in point-of-care diagnostics and personalized medicine. ↩︎
9. Understanding SLA printing’s capabilities helps engineers make informed decisions about which prototyping technology best suits their specific design validation needs. ↩︎
10. Understanding photopolymer resins is essential for optimizing 405 nm laser printing performance and achieving the best material properties for your specific application needs. ↩︎
