Key Takeaways
405 nm lasers match the absorption spectrum of most photopolymer resins used in SLA and DLP printing.
Shorter wavelengths allow tighter focusing, which improves printing resolution.
Stable laser power enables consistent polymerization and accurate layer formation.
Precise wavelength control reduces curing errors and improves surface finish.
Semiconductor 405 nm laser modules provide compact, efficient light sources for modern resin printers.
Resin 3D printing requires extremely precise light control to cure microscopic features. Without the right wavelength and beam quality, printed parts lose detail and dimensional accuracy.

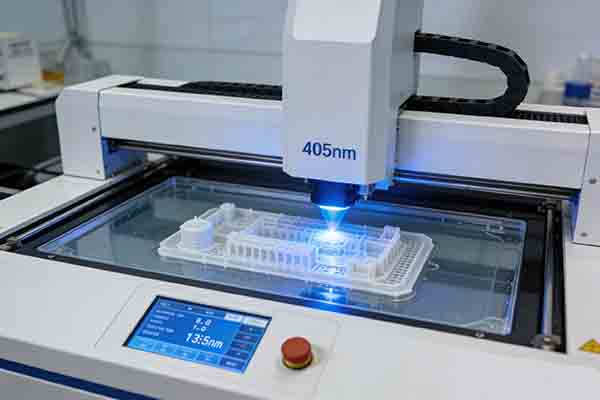

405 nm lasers enable high-resolution resin 3D printing because their wavelength efficiently activates photopolymer resins1 while allowing tightly focused beams that produce extremely fine cured features.
Understanding how 405 nm lasers interact with photopolymers helps engineers design printers capable of producing micro-scale structures2 with smooth surfaces and high dimensional accuracy.
Why Do Photopolymer Resins Respond Well to 405 nm Lasers?
Resin printing depends on photopolymerization. If the light wavelength does not match the resin chemistry, curing becomes inefficient and inaccurate.
Most SLA and DLP resins are optimized for ultraviolet-violet wavelengths around 405 nm, allowing rapid and controlled polymerization3.
Photopolymerization in Resin Printing
Resin 3D printing technologies such as SLA (Stereolithography) and DLP (Digital Light Processing) rely on a process called photopolymerization.
In this process, a liquid resin contains photoinitiators that react when exposed to specific wavelengths of light.
When the laser beam strikes the resin:
- Photoinitiator molecules absorb photons.
- Chemical bonds break and free radicals form.
- Polymer chains begin to grow.
- The liquid resin solidifies into a cured layer.
The efficiency of this process strongly depends on wavelength.
If the wavelength matches the photoinitiator absorption band4, polymerization occurs quickly and predictably.
Why 405 nm Became the Industry Standard
Most commercial photoinitiators used in resin printing are designed to absorb strongly in the near-UV region.
Typical absorption peaks occur around 380–420 nm, making 405 nm an ideal operating wavelength.
| Wavelength | Resin Absorption Efficiency | Printing Effect |
| 355 nm | Very high | Deep curing but higher system cost |
| 405 nm | High | Optimal balance of cost and curing speed |
| 450 nm | Moderate | Slower curing |
| 532 nm | Low | Poor polymerization efficiency |
Because 405 nm offers strong absorption while remaining compatible with efficient semiconductor lasers, it has become the most widely used wavelength in resin 3D printing systems.
Engineering Advantages of 405 nm Semiconductor Lasers
Modern resin printers typically use semiconductor diode lasers5 or LED sources.
Key advantages include:
- compact optical design
- high electrical-to-optical efficiency
- stable wavelength output
- long operational lifetime
These characteristics make 405 nm lasers suitable for both consumer and industrial resin printers.
Engineering Check
“Most photopolymer resins used in SLA printing are optimized for wavelengths around 405 nm.”
Photoinitiators in many commercial resins absorb strongly in the near-UV range, making 405 nm highly effective for curing.
“Any visible laser wavelength can cure resin equally well.”
Photopolymer resins require specific wavelengths that match the absorption spectrum of their photoinitiators.
How Does 405 nm Improve Printing Resolution?
High resolution in resin printing depends on the size of the cured voxel created by the light source.
Shorter wavelengths allow smaller focal spots6 and more precise curing areas.
Deep Explanation
Relationship Between Wavelength and Optical Resolution
Optical systems are limited by diffraction.
The minimum achievable spot size is proportional to the wavelength of the light.
Shorter wavelengths therefore enable smaller focused beams.
| Laser Wavelength | Typical Spot Size Capability | Printing Resolution Potential |
| 532 nm | Larger diffraction limit7 | Lower resolution |
| 450 nm | Moderate spot size | Medium resolution |
| 405 nm | Smaller spot size | High resolution |
Because 405 nm light has a shorter wavelength than most visible lasers used in optical systems, it allows tighter focusing through the printer optics.
This enables printers to produce extremely fine details.
Voxel Size Control
In resin printing, the smallest printable feature is determined by the voxel size, which depends on:
- laser spot diameter
- exposure energy
- resin sensitivity
- optical system quality
A tightly focused 405 nm beam can produce very small curing regions.
This allows printers to fabricate:
- microfluidic channels
- dental molds
- jewelry patterns
- precision prototypes
Surface Quality and Edge Accuracy
Another advantage of smaller curing spots is improved edge definition.
Smaller exposure areas reduce light bleeding and unintended curing outside the target region.
This leads to:
- smoother surfaces
- sharper edges
- improved dimensional accuracy
These characteristics are critical for applications that require high precision.
Engineering Check
“Shorter laser wavelengths allow tighter focusing and higher printing resolution.”
Diffraction limits scale with wavelength, so shorter wavelengths can produce smaller optical spot sizes.
“Printing resolution depends only on mechanical motion accuracy.”
Optical spot size and photopolymer curing behavior strongly influence achievable resolution.
Why Are 405 nm Semiconductor Lasers Ideal for Resin 3D Printers?
Modern resin printers require compact, reliable, and efficient light sources.
405 nm semiconductor lasers meet these requirements while delivering stable optical performance8.
Deep Explanation
Compact Optical Systems
Semiconductor diode lasers are small and easy to integrate.
Compared with traditional UV lasers, they require:
- fewer optical components
- simpler cooling systems
- smaller system footprints
This makes them ideal for desktop and industrial printers alike.
Stable Output Power
Consistent curing requires stable optical power.
If laser power fluctuates, polymerization becomes inconsistent and layer accuracy decreases.
High-quality diode lasers provide:
- stable wavelength output
- consistent power density
- predictable curing behavior9
These factors improve print repeatability.
Long Lifetime and Low Maintenance
Industrial resin printers must operate reliably for thousands of hours.
Semiconductor lasers typically offer:
- lifetimes exceeding tens of thousands of hours
- low electrical power consumption
- minimal maintenance requirements
These advantages reduce system cost and increase productivity.
Engineering Check
“405 nm semiconductor lasers provide compact and efficient light sources for resin 3D printing systems.”
Diode lasers combine high efficiency, stable output, and long operational lifetimes.
“High-resolution resin printers require large and complex laser systems.”
Modern printers often rely on compact semiconductor lasers that deliver sufficient power and precision.
Conclusion
405 nm lasers enable high-resolution resin 3D printing10 by matching photopolymer absorption, allowing tight optical focusing, and providing stable, efficient light sources for precise layer curing.
