What Limits the Resolution of 405 nm Laser 3D Printing?

Resin printers promise micron-level accuracy, but many systems cannot achieve it consistently. The limitation is not only software or mechanics.

The resolution of 405 nm laser 3D printing¹ is primarily determined by laser spot size, diffraction limits, and the quality of the optical system that focuses the beam onto the resin surface.

Understanding these limits helps engineers design better printers and helps buyers evaluate whether a system can truly deliver high-resolution SLA printing².

How Does Laser Spot Size Affect SLA Printing Resolution?

Many printers advertise high resolution, but the real limit often comes from the laser spot itself. If the spot is too large, fine features cannot form.

Laser spot size determines the minimum line width that can be written in the resin. Smaller spots enable finer details and higher resolution in SLA printing.

Deep Explanation

Spot size defines the smallest printable feature

In SLA printing, a focused laser scans across the surface of a liquid resin. Wherever the laser energy exceeds the curing threshold, the resin polymerizes and forms solid material. The diameter of the focused laser beam therefore defines the width of the cured line.

If the spot size is large, the cured voxel becomes wide. This limits the smallest printable feature. Even if the printer motion system is extremely precise, the cured geometry cannot be smaller than the optical energy distribution³.

Typical SLA laser spot sizes range from about 30 µm to 150 µm depending on the optical design.

Spot Size	Typical Application
20–40 µm	Ultra-high-resolution SLA
40–80 µm	Standard desktop SLA
80–150 µm	High-speed industrial printing

Smaller spot sizes increase resolution but reduce curing throughput because the beam covers less area per scan pass.

Gaussian beam profile effects

Laser beams typically follow a Gaussian intensity distribution⁴. This means the center of the beam has the highest energy density, while the edges gradually decrease. In resin curing, the polymerization threshold⁵ creates a boundary within this Gaussian profile.

As a result, the effective cured line width depends on:

• beam diameter
• resin sensitivity
• exposure energy
• scanning speed

This interaction means the actual cured feature may differ from the nominal optical spot.

Trade-off between resolution and productivity

A smaller beam improves feature accuracy but requires more scanning passes to build each layer. Industrial SLA printers often adjust spot size to balance resolution and throughput.

For example, a high-resolution dental printer may use a very small spot to reproduce fine geometry, while a production printer may use a larger spot to increase build speed.

Engineering Check

What Is the Diffraction Limit in 405 nm Laser Systems?

Even perfect optics cannot focus light infinitely small. The wave nature of light creates a physical limit known as diffraction.

The diffraction limit defines the smallest spot that a 405 nm optical system can theoretically produce.

Deep Explanation

Diffraction defines the theoretical minimum spot

When light passes through a lens aperture, it forms an Airy disk pattern⁶ rather than a perfect point. This phenomenon is caused by diffraction and sets a fundamental limit on focusing.

The minimum spot diameter depends on wavelength and numerical aperture of the focusing optics. Shorter wavelengths allow smaller spots.

Because 405 nm is shorter than most visible wavelengths used in lasers, it supports relatively high optical resolution.

Diffraction-limited spot estimation

The diffraction-limited spot diameter can be approximated using the following relation:

spot diameter ≈ 1.22 × wavelength / numerical aperture⁷

This equation shows two key engineering insights:

• shorter wavelength → smaller spot
• larger numerical aperture → smaller spot

For example:

Parameter	Example Value
Wavelength	405 nm
Numerical aperture	0.1–0.2
Diffraction-limited spot	~2–5 µm

However, most commercial SLA printers do not operate exactly at the diffraction limit because practical optics introduce additional constraints.

Why real systems exceed the diffraction limit

Several factors increase the practical spot size:

• optical aberrations⁸
• lens manufacturing tolerances
• beam quality (M² factor⁹)
• scanner mirror distortion
• resin surface reflections

These effects mean the real beam diameter is usually several times larger than the theoretical diffraction limit.

Even so, using a shorter wavelength like 405 nm significantly improves the achievable resolution compared with longer wavelengths.

Engineering Check

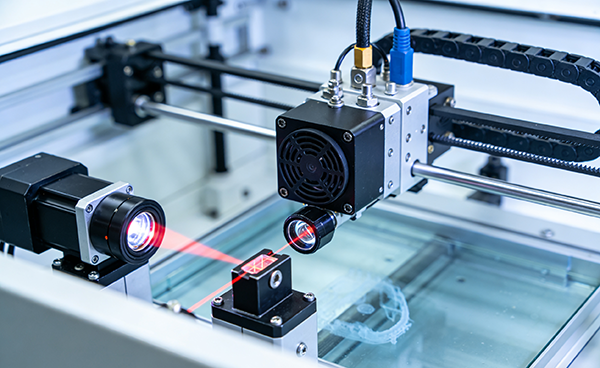

How Does the Optical System Influence High Resolution SLA Printing?

Even if the laser wavelength and spot size are optimized, poor optics can still reduce print quality.

The optical system controls beam quality, focusing precision, and scanning accuracy, which directly affect SLA resolution.

Deep Explanation

Optical path determines beam quality

The optical system in an SLA printer typically includes:

• laser diode or solid-state laser source
• beam shaping optics¹⁰
• collimation lenses
• galvanometer scanners¹¹
• focusing lens

Each component affects how the beam reaches the resin surface. If any part introduces distortion, the final spot may become larger or irregular.

For example, poor beam collimation can cause the focus to shift across the build area. This results in inconsistent feature sizes.

Galvanometer scanning effects

Most laser SLA printers use galvanometer mirrors to steer the beam. While this allows fast scanning, it also introduces optical challenges. When the beam moves away from the center of the field, the optical path changes slightly. This can produce field curvature and spot distortion¹².

High-end systems compensate for these effects using telecentric lenses¹³ or field correction algorithms.

Optical design determines uniformity

Uniform resolution across the build platform requires careful optical design. Important parameters include:

• focal length stability
• field distortion correction
• beam circularity
• thermal stability

A well-designed optical system ensures that the spot size remains consistent across the entire printing area.

Optical factor	Impact on resolution
Beam quality (M²)	Determines focus sharpness
Lens aberrations	Can enlarge spot size
Scanner alignment	Affects positioning accuracy
Field correction	Maintains uniform resolution

System-level optimization

High-resolution SLA printing is not determined by wavelength alone. It results from the interaction between optics, laser characteristics, and resin chemistry.

Engineers must optimize:

• laser wavelength
• beam quality
• optical alignment
• resin photochemistry

Only when these elements work together can the system achieve true micron-scale printing accuracy.

Engineering Check

Conclusion

High-resolution SLA printing depends on the combined limits of laser spot size, diffraction physics, and optical system design rather than wavelength alone.

My Insight

From an engineering point of view, the wavelength itself is rarely the real limitation in high resolution SLA printing. A 405 nm laser¹⁴ already provides a short enough wavelength for micron-level features. The real challenge is how well the optical system can use that light. Poor beam quality, lens aberrations, scanner distortion, and resin over-curing often increase the effective spot size far beyond the theoretical diffraction limit. This is why two printers using the same 405 nm wavelength can produce very different results. In practice, high resolution SLA printing depends on system-level engineering: stable laser output, high-quality optics, precise beam control, and well-characterized resin chemistry working together.
