Key Takeaways
405 nm became the industry standard for resin 3D printing because most photoinitiators absorb strongly in this wavelength range.
The wavelength balances curing efficiency, optical system cost, and semiconductor laser availability.
Infrared wavelengths such as 1064 nm cannot efficiently trigger photopolymerization reactions.
Visible wavelengths outside the violet region often produce slower curing or poor resolution.
405 nm diode lasers and LEDs provide compact, stable, and cost-effective light sources for industrial resin printers.
Resin 3D printing depends on precise light-driven chemistry, but the wrong wavelength can cause slow curing and unstable printing. Many early systems struggled with this mismatch.
405 nm became the standard wavelength for resin 3D printing because common photoinitiators absorb strongly in the violet region, enabling efficient polymerization while remaining compatible with affordable semiconductor light sources.
Understanding why 405 nm dominates resin printing requires looking at both photochemistry and laser engineering. The wavelength is not arbitrary; it is the result of chemistry, optics, and manufacturing economics.
What Is the Absorption Peak of Photoinitiators?
Resin printing fails when the light source does not match the photoinitiator absorption band. Poor spectral matching1 wastes energy and slows polymerization.
Photoinitiators used in photopolymer resins typically absorb strongly between 380 nm and 420 nm, with many common initiators optimized around 405 nm.
Deep Explanation
Photoinitiators trigger polymerization
Resin 3D printing works through photopolymerization2. Liquid resin contains monomers, oligomers, and a photoinitiator. The photoinitiator absorbs photons from the light source and generates reactive species, usually free radicals3. These radicals start a chain reaction that converts liquid monomers into a solid polymer network.
The efficiency of this reaction depends heavily on spectral matching between the light source and the photoinitiator absorption band. If the wavelength falls near the absorption peak, photon energy is absorbed efficiently and radical formation begins quickly. If the wavelength is outside the absorption band, the resin receives light but the chemical reaction barely starts.
Absorption spectra define the usable wavelength
Most modern photoinitiators used in stereolithography (SLA), digital light processing (DLP), and LCD resin printing are designed to absorb in the near-UV or violet region. Typical absorption peaks fall between 380 nm and 420 nm.
The table below shows simplified behavior of common photoinitiator ranges.
| Photoinitiator type | Typical absorption peak | Application |
| TPO derivatives | ~380–420 nm | SLA and DLP resins |
| BAPO derivatives | ~385–420 nm | High-speed photopolymerization |
| UV photoinitiators | ~350–400 nm | Industrial coatings |
Because many commercial photoinitiators peak near 405 nm, resin systems can achieve high curing efficiency with relatively modest optical power. This allows compact printers to deliver consistent layer curing without requiring extremely high power density.
Resolution and penetration depth
Another reason 405 nm works well is the balance between absorption depth and spatial resolution. If the wavelength is too strongly absorbed, light cannot penetrate the resin layer deeply enough to cure a full layer thickness. If absorption is too weak, the curing region spreads vertically and reduces layer accuracy.
Violet wavelengths around 405 nm create a useful compromise. They allow sufficient penetration through thin resin layers while maintaining tight energy localization. This is essential for accurate layer formation in high-resolution printing.
From an engineering perspective, the 405 nm region is ideal because it aligns photochemistry with practical optical sources. Semiconductor diode lasers and LEDs at this wavelength are compact, efficient, and easy to integrate into printer systems.
Engineering Check
“Photoinitiators in most SLA and DLP resins absorb strongly near 405 nm.”
This is correct because many commercial photoinitiators are formulated to match the spectral output of 405 nm light sources.
“Photoinitiators respond equally well to any visible wavelength.”
This is false because photoinitiators have specific absorption spectra and require matching wavelengths for efficient polymerization.

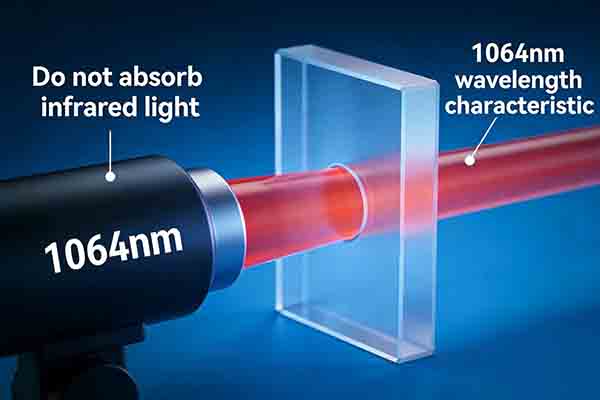

Why Isn’t 1064 nm Used for Resin Printing?
Some lasers offer very high power at 1064 nm4, so it may seem attractive for curing resin. However, the chemistry does not support this wavelength.
1064 nm infrared light cannot efficiently activate typical photoinitiators5 used in photopolymer resins because these molecules absorb primarily in the UV and violet region.
Deep Explanation
Photons must have sufficient energy
Polymerization begins when a photoinitiator absorbs a photon and reaches an excited electronic state. The photon must have enough energy to trigger the molecular transition required to generate reactive radicals.
Photon energy depends on wavelength. Shorter wavelengths carry more energy per photon, while longer wavelengths carry less.
Infrared light at 1064 nm has much lower photon energy6 than violet or UV light. As a result, most photoinitiators cannot absorb this radiation effectively.
Infrared absorption is extremely weak
Typical resin formulations are nearly transparent to infrared wavelengths such as 1064 nm. When a resin layer is exposed to infrared light, the majority of the energy passes through the liquid without triggering polymerization. Even very high laser power would struggle to start the chemical reaction.
This is fundamentally different from materials like metals, where infrared absorption can still produce heating. Resin printing requires photochemical activation, not simply thermal heating.
Two-photon polymerization is different
There are specialized research systems that use infrared lasers for polymerization through a mechanism called two-photon absorption. In this process, two infrared photons combine to excite a molecule that normally absorbs UV light.
However, this technique requires extremely high photon densities and femtosecond pulsed lasers. It is used for micro-scale fabrication rather than mainstream resin printing.
| Method | Typical wavelength | Use case |
| Standard SLA/DLP curing | ~405 nm | Commercial resin printers |
| UV curing | 355–385 nm | Industrial photopolymers |
| Two-photon polymerization | ~700–1000 nm | Micro/nano fabrication |
For typical consumer and industrial printers, the cost and complexity of infrared two-photon systems make them impractical.
Engineering Check
“1064 nm infrared light cannot efficiently activate most photoinitiators used in resin printing.”
This is correct because these molecules absorb strongly in the UV–violet range rather than in the infrared region.
“Increasing infrared laser power can compensate for poor photoinitiator absorption.”
This is false because photopolymerization requires the correct photon energy, not just higher optical power.

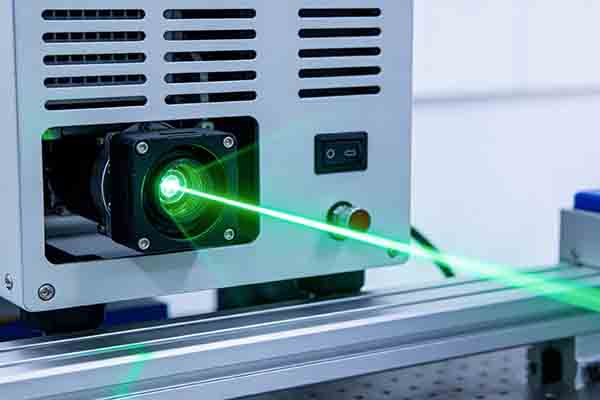

Why Aren’t Other Visible Wavelengths Used?
If visible light is easier to generate than UV light, it may seem logical to use other colors such as green or red. But these wavelengths are rarely used in resin printers.
Most visible wavelengths outside the violet region have poor absorption in standard photopolymer resins, which reduces curing speed and resolution.
Deep Explanation
Absorption decreases at longer wavelengths
As wavelength increases toward green and red light, the absorption coefficient of typical photoinitiators decreases significantly. The molecules simply do not interact strongly with these photons.
This means that green or red light may pass through the resin without generating enough radicals to sustain polymerization. Even if curing occurs, the process will be slow and inefficient.
Resolution challenges
Another important factor is optical resolution. Shorter wavelengths allow tighter focusing and higher spatial precision in optical systems. This is a fundamental principle of optics. When wavelength increases, the diffraction-limited spot size7 also increases.
For resin printing, this means longer wavelengths can reduce achievable feature resolution. Since many resin printers aim to produce fine details and thin layers, shorter wavelengths provide a clear advantage.
The practical compromise
405 nm represents a practical compromise between UV chemistry and semiconductor manufacturing. Pure UV lasers such as 355 nm systems can also cure photopolymers effectively, but they are typically more expensive and complex.
In contrast, violet 405 nm diodes and LEDs8 are widely available because they are used in consumer electronics such as Blu-ray optical systems. This large manufacturing ecosystem dramatically reduced the cost of high-quality violet light sources.
| Wavelength range | Resin curing performance | Practical considerations |
| UV (355–385 nm) | Excellent curing | Higher system cost |
| Violet (405 nm) | Very strong curing | Mature diode technology |
| Green (520–532 nm) | Weak curing | Limited photoinitiator absorption |
| Red (>630 nm) | Very weak curing | Poor polymerization |
Because of this balance, 405 nm became the dominant wavelength for SLA, DLP, and LCD resin printing systems.
Engineering Check
“Shorter wavelengths generally enable better optical resolution in resin printing systems.”
This is correct because diffraction-limited spot size decreases as wavelength decreases.
“Green and red light cure standard photopolymer resins as efficiently as violet light.”
This is false because most photoinitiators do not absorb strongly at those wavelengths.
Conclusion
405 nm became the standard wavelength for resin 3D printing because it matches photoinitiator absorption peaks while enabling efficient, compact, and affordable semiconductor light sources9.
My Insight
From an engineering perspective, the dominance of 405 nm in resin 3D printing10 is not accidental. It is the point where photochemistry and semiconductor technology11 meet. Photoinitiators absorb efficiently in the violet region, and 405 nm diode sources are compact, stable, and inexpensive. This combination makes it possible to build reliable resin printers without complex UV laser systems12 or excessive optical power.
