Steel is strong—but that’s the problem. Once it’s hardened, it’s tough to cut, bend, or reshape. That strength becomes a trap.
Yes, hardened steel can be softened again—and modern laser technology offers the fastest, most precise way to do it.
Sometimes, brute strength isn’t the answer. Whether you’re working on repairs or precision manufacturing, understanding how to reverse steel hardening can save hours of work and reduce costs. Let’s explore the evolution—from ancient fire to advanced photonics.
The Science of Softness: What Happens Inside Hardened Steel?
Steel becomes hard through transformation. That transformation is reversible—with heat.

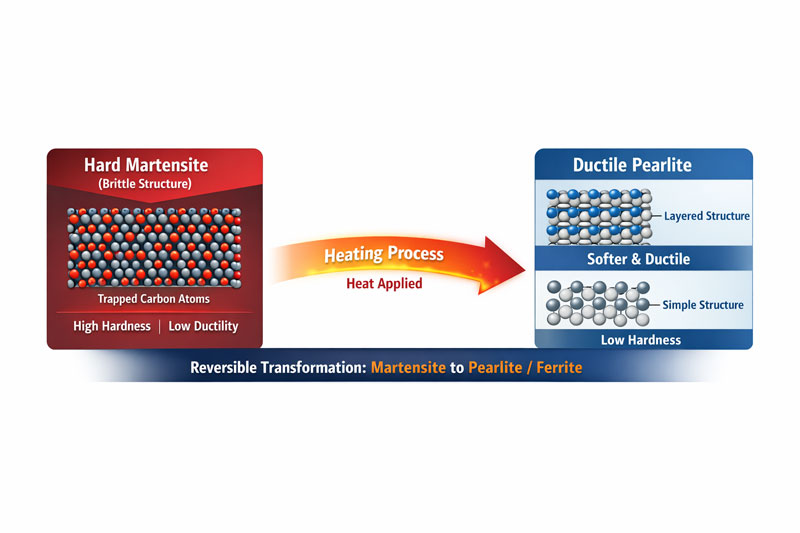

Heating steel allows its molecular structure to shift back from hard Martensite1 to softer Pearlite or Ferrite.
What actually changes inside steel?
When steel is quenched, it traps carbon atoms in a distorted crystal structure known as Martensite1. This structure is strong but brittle.
- Martensite1: Hard and brittle, formed by rapid cooling.
- Pearlite/Ferrite2: Softer and more flexible, formed by slow cooling.
| Structure | Hardness | Ductility | Formation Condition |
|---|---|---|---|
| Martensite1 | High | Low | Fast cooling |
| Pearlite | Medium | Medium | Slow cooling |
| Ferrite | Low | High | Very slow cooling |
Steel also holds internal stress from the sudden temperature change. When reheated, atoms can realign. That’s how heat "relaxes" the steel. The critical moment is when the metal moves from elastic to plastic behavior—where it bends instead of snapping.
Critical Temperatures: At What Point Does Steel Lose Its Hardness?
Heat works—but only if you reach the right temperature range.

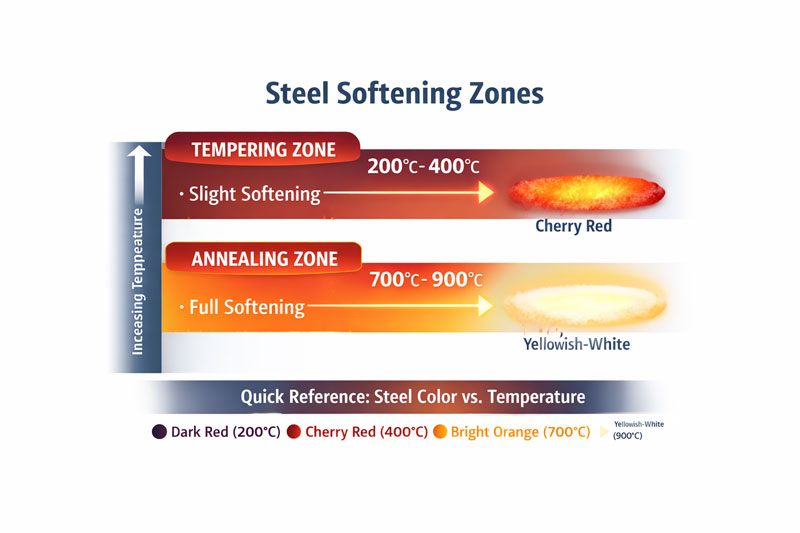

Steel begins to soften around 200°C during tempering3 and fully softens above 700°C during annealing4.
Temperature zones and their effects
- Tempering Zone (200°C – 400°C): Slight softening to reduce brittleness.
- Annealing Zone (700°C – 900°C): Full molecular reorganization.
| Temperature (°C) | Color (Approx.) | Process |
|---|---|---|
| 200 | Dark Red | Tempering |
| 400 | Cherry Red | Softening |
| 800 | Bright Orange | Annealing |
| 900 | Yellowish-White | Full Anneal |
Temperature control is everything. Going too low won’t change the structure. Too high, and you risk damaging the workpiece.
Traditional Methods: The Art of Controlled Cooling?
Old methods work—but they demand patience, practice, and care.

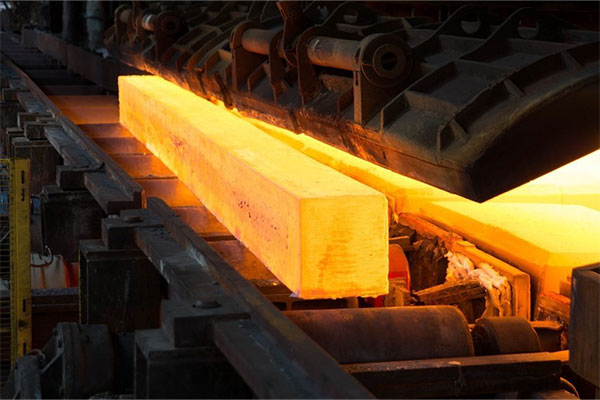

Full annealing involves heating the steel and letting it cool slowly, often in sand, lime, or a closed furnace.
Techniques that still matter today
- Full Annealing5: Heat to critical temp, then cool slowly (often overnight).
- Cooling Control: Use materials like lime or ash to retain heat longer.
- Flame Softening: Localized heating with torches—good for small jobs.
These methods are cost-effective for large parts or when advanced equipment isn’t available. But they’re not fast. They also heat the entire part—even if you only need to soften one section.
The Modern Revolution: High-Power Diode Lasers (HPDL)?
Now, there’s a faster way—with less energy waste.

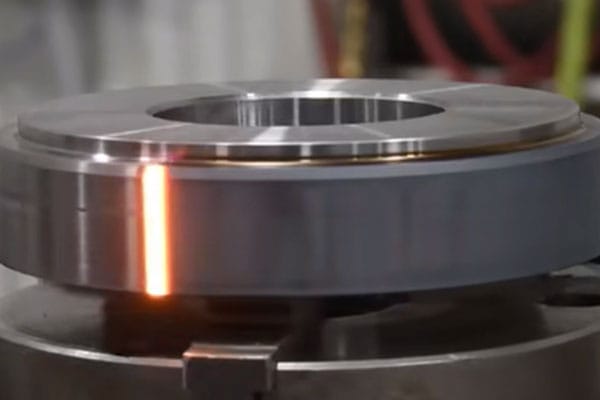

High-power diode lasers (HPDLs) can locally soften steel with millimeter-level accuracy, reducing energy usage and avoiding distortion.
Why lasers are changing the game
Laser softening heats only where needed. Instead of heating an entire 50kg block, you can soften just the 5mm that needs machining.
Key features:
- Selective heating: Ideal for drills, gears, or edges.
- Speed: Reaches critical temp in seconds.
- Precision: No thermal shock to nearby structures.
| Feature | Traditional Furnace | HPDL Softening |
|---|---|---|
| Heating Area | Entire Part | Localized Zone |
| Energy Efficiency | Low (heat lost to air) | High (direct absorption) |
| Time | Hours to cool | Minutes to finish |
| Distortion Risk | High | Very low |
At Vivlaser, we design and supply High-power diode lasers modules with locked-wavelengths for this exact purpose. Our systems allow selective energy delivery without compromising structural integrity.
Comparing the Tools: Laser vs. Furnace?
Let’s break down which tool fits your job.
Lasers are faster, cleaner, and more precise than traditional furnaces.
Side-by-side comparison
| Factor | Furnace | Diode Laser |
|---|---|---|
| Energy Use | High (heats air and furnace) | Low (direct to steel) |
| Time to Soften | Long (hours) | Short (seconds/minutes) |
| Precision | Low (heats whole part) | High (targeted area) |
| Environmental Impact | High CO₂ emissions | Low carbon footprint |
| Risk of Warping | High (thermal expansion) | Minimal |
HPDL technology is particularly suited for industries that demand accuracy—like medical device machining, microfabrication, and aerospace parts.
Reversing Case Hardening: Is It Possible?
Surface hardening is tough to undo—but not impossible.
Laser treatment can reverse surface hardening selectively, preserving core strength.
Where lasers shine in surface work
Case-hardened steel has a tough exterior and a soft interior. Furnace softening will affect the entire part. But a laser can strip or soften only the outer layer.
Applications:
- Gear repair
- Tool reshaping
- Precision bore reworking
Laser softening offers the best control for these tasks. It preserves the inner ductility while reworking only the hard shell. Vivlaser’s beam-quality management technology allows softening without degrading other performance specs.
Conclusion: Choosing the Right Method for Your Project
Old-school heating works, but lasers offer speed, precision, and control—perfect for today’s high-stakes manufacturing.
Safety Tip: Always confirm your steel type before applying heat. Misjudgment can lead to cracking or permanent damage.
-
Understanding Martensite is crucial for grasping steel’s properties and applications. Explore this link for in-depth insights. ↩ ↩ ↩ ↩
-
Learning about Pearlite and Ferrite helps in understanding steel’s flexibility and strength. Check this resource for detailed explanations. ↩
-
Understanding the effects of tempering at 200°C is crucial for achieving desired steel properties. ↩
-
Exploring the annealing process at 700°C reveals how steel’s molecular structure is fully reorganized for optimal performance. ↩
-
Understanding Full Annealing is crucial for mastering steel treatment techniques, ensuring optimal results in your projects. ↩
