Autonomous vehicles promise safer roads, less traffic, and more freedom. But to truly "see" the world around them, they need LiDAR.

LiDAR gives autonomous vehicles the ability to perceive their surroundings in 3D, making real-time, safe navigation possible.

LiDAR is more than a sensor. It’s the backbone of machine perception for autonomous mobility. Let’s explore why.

What Is LiDAR and How Does It Work?

From flying cars to robotaxis, LiDAR makes the idea of autonomous driving real.

LiDAR uses laser pulses to measure distances with high precision, building a detailed 3D map¹ of the environment in real-time.

Understanding the Basics

LiDAR stands for Light Detection and Ranging. It sends out laser pulses that reflect off objects. By measuring the time it takes for the light to return (Time of Flight² or ToF), it calculates distances. Repeating this process thousands of times per second creates a "point cloud" — a high-resolution 3D map¹.

Term	Definition
ToF (Time of Flight2)	Time taken for a laser pulse to travel to an object and back
Point Cloud	3D representation made from millions of ToF measurements
Angular Resolution	The precision of the sensor’s scanning angle

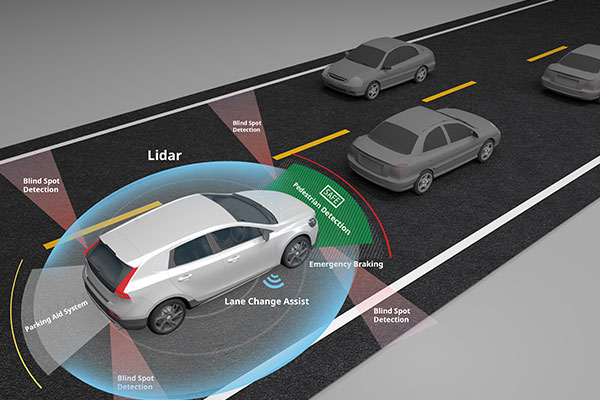

Why LiDAR³ Is Critical for Autonomous Vehicles?

Humans use eyes. Self-driving cars use LiDAR³. It’s that simple.

Compared to cameras and radar, LiDAR³ offers unmatched accuracy in object detection⁴, depth perception, and environmental understanding.

Cameras vs Radar vs LiDAR³

Cameras provide rich color and texture, but they struggle in poor lighting. Radar works in all weather, but lacks resolution. LiDAR³ bridges the gap with high-precision 3D sensing, unaffected by darkness or glare.

Technology	Pros	Cons
Camera	High resolution, color info	Weak in low light, no depth info
Radar	Works in all weather	Low spatial resolution
LiDAR3	Accurate 3D data, fast response	Higher cost, moving parts (for some)

Types of LiDAR Technologies?

Not all LiDARs are built the same. Some spin, some flash, some don’t even move.

LiDAR types differ in design, cost, reliability, and performance, which affect their use in vehicles.

Comparing the Main Types

Mechanical LiDAR⁵

• 360° view using spinning lasers

• Proven and accurate, but bulky and costly

MEMS LiDAR

• Uses tiny mirrors to steer laser beams

• Smaller, cheaper, but limited range

Flash LiDAR⁶

• No moving parts, illuminates entire scene at once

• Great for short-range, fast reaction

OPA (Optical Phased Array) LiDAR

• Solid-state beam steering

• Durable and scalable, but still emerging

Type	Moving Parts?	Range	Cost	Maturity
Mechanical	Yes	Long	High	Mature
MEMS	Few	Medium	Medium	Growing
Flash	No	Short	Low	Emerging
OPA	No	Medium	Low	Early R&D

The Laser Inside: How Semiconductor Lasers Enable LiDAR?

Behind every LiDAR system is a small but powerful laser.

Semiconductor lasers⁷ define the performance, safety, and cost of LiDAR systems.

Wavelengths and Power

The two most common LiDAR laser wavelengths are 905 nm and 1550 nm.

Parameter	905 nm	1550 nm
Cost	Lower	Higher
Eye Safety Power Limit	Lower	Higher (Class 1)
Range	Medium	Long
Components	Mature	Complex (often fiber-based)

905 nm lasers are used in most current systems due to low cost and maturity. But 1550 nm lasers allow higher power within safety limits, making them better for long-range or adverse conditions.

Why Beam Quality Matters

Beam shape and divergence affect how sharp the 3D point cloud is. Good collimation and fast pulse modulation lead to better edge detection and object classification.

Challenges in LiDAR Development and Cost Reduction?

LiDAR must become cheaper, smaller, and better — all at once.

Mass adoption depends on solving technical challenges in resolution, reliability, and integration.

Key Challenges

Resolution & Beam Steering

Solid-state designs must match the angular resolution of mechanical systems.

Thermal Management

Lasers drift or degrade under heat. Systems need advanced cooling and control.

Size & Cost

Reducing module size and price without sacrificing performance is essential.

Integration

Automakers want LiDAR modules embedded in bumpers, headlights, or windshields. That requires compact, robust, and low-power designs.

LiDAR Market Trends and Leading Players?

The race is on. And the field is getting crowded.

LiDAR is shifting from experimental to essential, with major players scaling production for automotive-grade use.

Market Dynamics

• Global LiDAR market projected to exceed $4B by 2028

• OEMs like Volvo, Mercedes, and Audi already adopting

• Tier-1 suppliers integrating LiDAR into ADAS platforms

Key Players

Company	Region	Technology
Velodyne	USA	Mechanical
Luminar	USA	1550 nm, long-range
Hesai	China	Hybrid, MEMS-based
RoboSense	China	MEMS, Flash

From Robotics to Road — The Broader Future of LiDAR?

LiDAR isn’t just for cars.

Its ability to map and sense in 3D makes it valuable across many industries.

Key Growth Areas

Robotics

Obstacle avoidance and indoor navigation

Drones

Mapping, surveying, and delivery navigation

Security

Perimeter scanning, intruder detection

Smart Cities

Traffic flow optimization, pedestrian safety

Insight: How Laser Innovation Shapes the Future of Mobility?

As LiDAR evolves, lasers remain the bottleneck and the breakthrough.

Laser innovation — in wavelength control, beam shaping, and thermal reliability — is the real driver of next-gen LiDAR.

What Matters Most

Wavelength Trade-Offs

905 nm is cheaper, 1550 nm is safer and stronger. Choice affects cost, range, and safety.

Beam Precision

Beam shaping determines spatial resolution. Better shape = sharper data.

Thermal Control

Without stable temperature, wavelength drifts. TECs and feedback loops are essential.

Bottom Line

In the race toward autonomous driving, the enabler isn’t just smarter sensors — it’s better lasers.

Conclusion

LiDAR is changing how machines see. Lasers are changing how LiDAR works. Together, they’re redefining the future of mobility.

---
