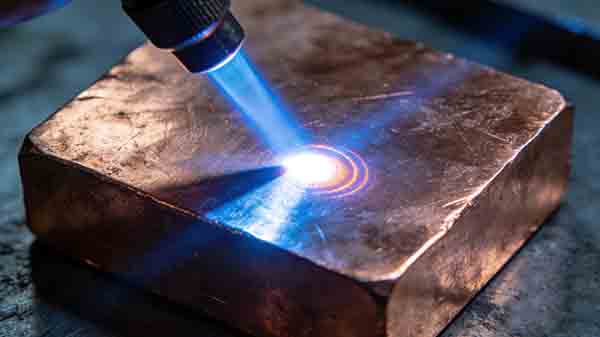

Why Copper Reflects Infrared Lasers?

Copper is widely used in electrical systems and electronics. However, its interaction with infrared lasers¹ creates major challenges during laser processing and welding.

Copper reflects infrared lasers because its free electrons respond strongly to electromagnetic waves and re-emit most of the incoming energy instead of absorbing it as heat.

Understanding why copper reflects infrared radiation helps engineers design better laser welding processes ² and choose appropriate laser wavelengths for copper processing.

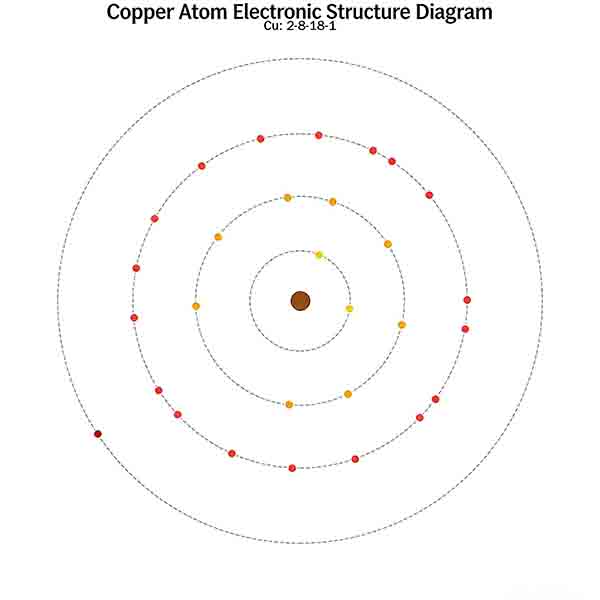

What Material Properties Cause Copper to Reflect Infrared Light?

Copper’s electronic structure gives it extremely high electrical and thermal conductivity. These same properties also cause strong reflection of infrared laser energy³.

The large number of mobile electrons in copper interact with incoming electromagnetic waves and reflect most of the laser energy rather than allowing it to penetrate the material.

Deep Explanation

Free Electrons in Metals

Metals contain a large population of free electrons⁴. These electrons are not tightly bound to atoms and can move easily through the metal lattice.

Copper has one of the highest electrical conductivities of all engineering metals. This means electrons respond quickly when an electromagnetic wave—such as a laser beam—reaches the surface.

When an infrared laser hits copper, the oscillating electric field of the laser forces these electrons to move.

However, instead of absorbing the energy, the electrons quickly re-emit the electromagnetic wave back into space.

This behavior creates strong reflection.

Electromagnetic Response of Conductive Metals

Copper behaves like a mirror for many wavelengths of electromagnetic radiation.

When laser radiation reaches the surface:

1. The electromagnetic field interacts with free electrons.
2. Electrons oscillate at the same frequency as the incoming wave.
3. These oscillating electrons emit radiation outward.
4. The outgoing wave becomes the reflected beam.

Because copper has extremely high electrical conductivity, this response is very efficient.

Property	Copper Behavior	Impact on Laser Processing
Electrical conductivity	Extremely high	Strong electromagnetic response
Free electron density	Very high	Efficient reflection
Thermal conductivity	Very high	Heat spreads quickly

These properties explain why copper reflects most infrared laser energy.

Skin Depth and Energy Penetration

Another important concept is skin depth⁵.

Skin depth describes how deeply electromagnetic radiation can penetrate into a conductive material before being attenuated.⁶

For infrared lasers, copper has a very small skin depth. Most of the laser energy interacts only with a very thin surface layer.

This shallow interaction means most of the energy is reflected rather than absorbed.

As a result, the initial heating stage during copper laser welding can be unstable.

Engineering Check

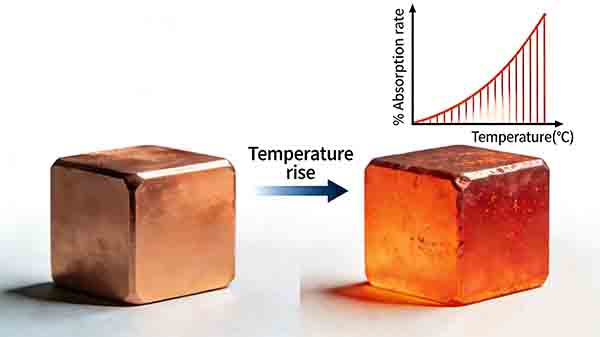

Why Does Copper Absorption Increase After Heating?

Although copper strongly reflects infrared lasers⁷ at room temperature, its absorption behavior changes during heating and melting.

As copper temperature rises, surface conditions change and the material begins absorbing more laser energy.

Deep Explanation

Temperature-Dependent Optical Properties

Copper’s reflectivity is not constant. It changes with temperature and material phase.

When the copper surface heats up:

• surface roughness increases
• oxide layers may form
• electron scattering changes

These effects reduce reflectivity and increase absorption.

Material Condition	Reflectivity Trend	Process Effect
Cold solid copper	Very high reflectivity	Difficult laser coupling
Heated surface	Reflectivity decreases	Absorption improves
Molten copper	Higher absorption	Rapid heating possible

Because of this transition, copper laser welding often starts slowly and then suddenly accelerates once melting begins.

Thermal Runaway in Copper Welding

When absorption increases suddenly, the welding process can experience thermal runaway⁸.

The sequence often looks like this:

1. Laser initially reflects from the surface.
2. Small areas begin to heat and melt.
3. Absorption rises sharply.
4. Energy deposition increases rapidly.

This sudden energy jump can destabilize the melt pool and produce spatter.

Engineering Implications

For engineers designing laser welding systems, this behavior means:

• process initiation must be carefully controlled
• power ramping may be required
• wavelength selection can strongly affect stability

Understanding temperature-dependent absorption helps engineers design processes that avoid sudden energy spikes.

Engineering Check

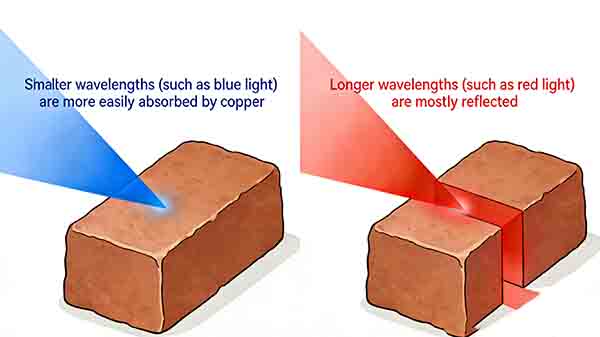

Why Do Shorter Wavelength Lasers Interact Better with Copper?

Laser wavelength strongly affects how copper interacts with laser energy.

Shorter wavelength lasers are absorbed more efficiently by copper surfaces than infrared lasers.

Deep Explanation

Wavelength-Dependent Absorption

Copper reflectivity depends strongly on wavelength.

In general:

• longer wavelengths are reflected more strongly
• shorter wavelengths are absorbed more easily

This is why copper behaves differently under different laser sources.

Laser Type	Wavelength Range	Copper Interaction
Infrared fiber lasers	~1 µm	Low absorption
Near-infrared diode lasers	~900–980 nm	Slightly improved absorption
Blue lasers	~450 nm	Much higher absorption

Higher absorption means laser energy enters the material more efficiently.

Impact on Welding Stability

Better energy coupling creates several advantages:

• faster melt initiation
• smoother heating
• more stable melt pool behavior

Because energy is absorbed more consistently, there is less sudden transition from reflection to absorption.

This significantly improves welding stability.

Industrial Trend Toward Shorter Wavelengths

In recent years, many industrial copper welding systems have begun using shorter wavelength semiconductor lasers.

These systems are especially common in:

• EV battery tab welding
• copper busbar joining
• electronics manufacturing

The improved absorption reduces spatter and improves weld consistency.

Engineering Check

My insight

In industrial laser processing, copper’s high infrared reflectivity is not just a material property—it directly shapes how welding processes must be engineered. The core issue lies in copper’s extremely high free-electron density, which allows incoming infrared laser energy to be rapidly re-emitted instead of converted into heat. For engineers, this means the initial laser–material coupling stage is inherently unstable.

In real production environments, the biggest challenge occurs during the transition from reflection to absorption. At room temperature, copper reflects most of the 1 µm infrared light from fiber lasers. But once a small region begins to heat and melt, absorption increases rapidly. If the laser power is already high, this sudden increase in absorbed energy can create thermal spikes, keyhole instability, and spatter.

This is why many modern copper welding solutions now focus on improving initial energy coupling rather than increasing total power. Shorter wavelength sources—especially blue semiconductor lasers around 450 nm ⁹significantly improve absorption at the copper surface. The result is smoother melt initiation, more stable weld pools, and fewer process defects.

For laser system designers, the key takeaway is clear: copper welding performance ¹⁰is heavily wavelength-dependent. Choosing the right laser wavelength and controlling the early-stage energy input often has a greater impact on process stability than simply increasing laser power.
