Pump diodes are the heart of modern DPSS, ultrafast, and fiber laser systems.
When the pump source becomes unstable, every downstream module — from the gain medium to the output beam — is immediately affected.

Understanding why pump diodes fail, how failures appear, and what preventive strategies actually work can dramatically extend system lifetime and reduce unexpected downtime.

In this guide, we break down the most common pump diode failure modes and the engineering practices that prevent them.

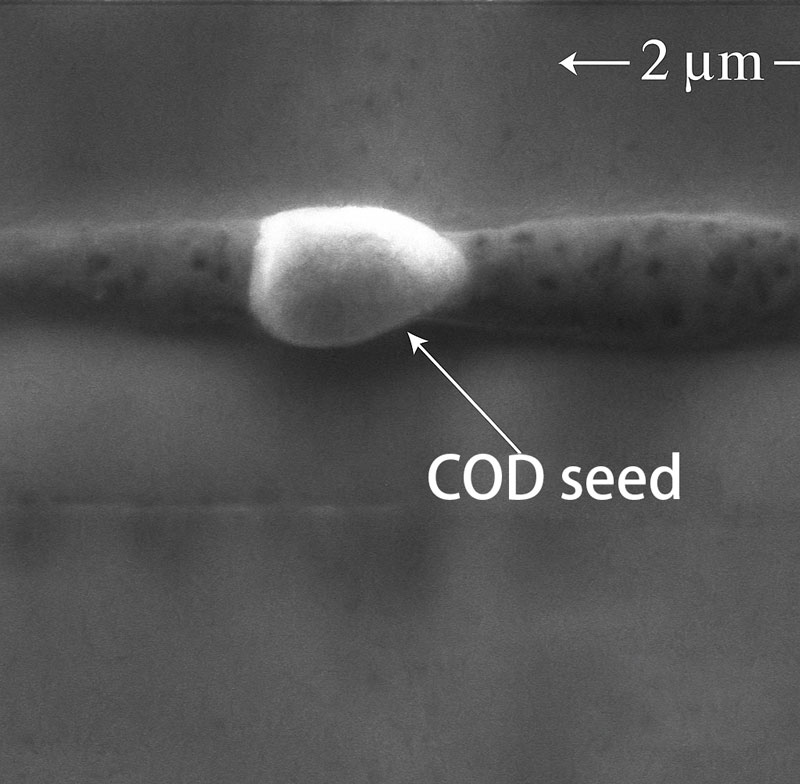

1. Catastrophic Optical Damage (COD)¹

COD is the most severe and irreversible failure of laser diodes.

How COD happens

• Excessive optical density on the facet

• Local overheating due to poor heat extraction

• Back-reflection into the emitting region

• Dust, contamination, or coating defects

Once the facet reaches a runaway temperature, it burns, melts, and the diode permanently stops lasing.

Symptoms

• Sudden drop to zero optical output

• Abnormally high threshold current

• Visible burn marks on the facet (if inspected)

How to prevent COD

• Use FAC/SAC collimation to reduce intensity hotspots

• Ensure anti-reflection coatings² are high-quality and wavelength-matched

• Add back-reflection protection, especially for DPSS and fiber-coupled systems

• Implement fast transient thermal management

• Avoid powering the diode without proper heatsinking

2. Thermal Runaway and Overheating

Pump diodes are extremely temperature sensitive.
A rise of 1°C can shift wavelength by ~0.3 nm, reducing absorption efficiency in crystals like Nd:YVO4 or Yb:YAG.

Causes

• Poor thermal interface materials³

• Inadequate heatsink or cooler capacity

• Fan / water pump degradation

• High ambient temperature

• Dust blocking airflow

• Thermal paste drying out

Symptoms

• Gradual power drop

• Increasing divergence

• Wavelength drift

• Output instability after warm-up

How to prevent

• Use active temperature control⁴ with TEC or stable water cooling

• Maintain diode case temperature within spec (often 20–30°C)

• Ensure TIM (thermal interface material) is applied correctly

• Verify heatsink flatness and compression pressure

• Use micro-chillers for high-power modules

3. ESD and Electrical Overstress (EOS)

Pump diodes are extremely vulnerable to transient electrical spikes.

Typical causes

• Static discharge during handling

• Power supply instability

• Rapid current overshoot at startup

• Inductive kickback from cables

Symptoms

• Sudden partial or total loss of power

• High threshold current

• Erratic output

• Device intermittently working

Prevention

• Always use ESD-safe⁵ workstations

• Add soft-start circuits or slow-ramping drivers

• Use high-quality constant-current laser diode drivers⁶

• Eliminate inductive components in wiring paths

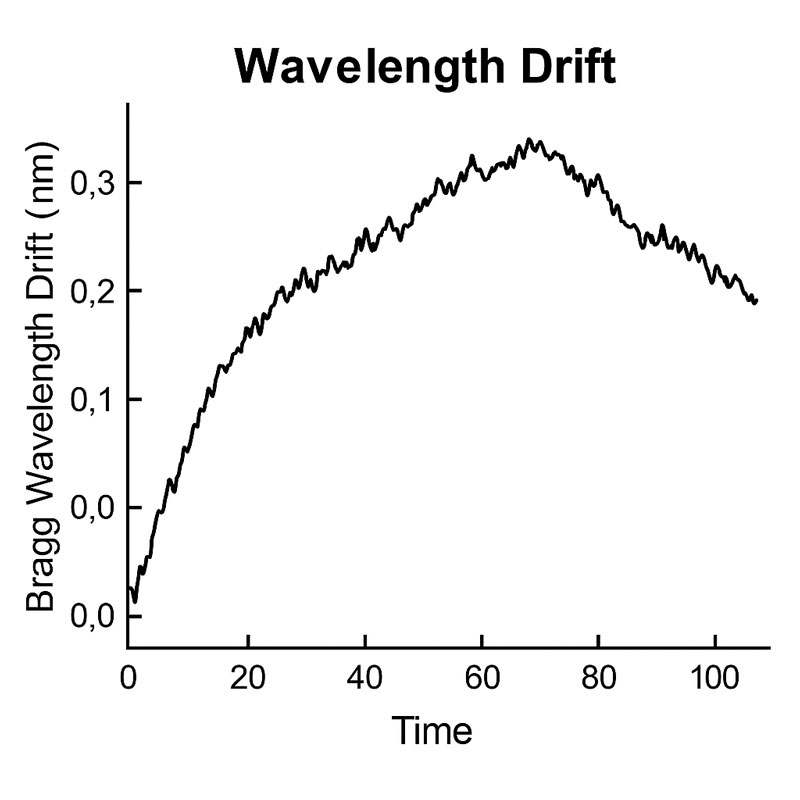

4. Wavelength Drift and Mode Instability

For DPSS lasers, especially UV (355 nm) and green (532 nm), even tiny wavelength deviations⁷ in the pump source can drastically reduce conversion efficiency.

Causes

• Temperature drift

• Insufficient cooling

• Aging of the laser chip

• Current fluctuations

• Poor thermal contact

Symptoms

• Lower UV or green output

• Increased noise

• Fluctuating beam pointing

• Reduced SHG/THG efficiency

Prevention

• Maintain diode temperature stability within ±0.1°C

• Use wavelength-locked pump diodes (VBG/FBG) when necessary

• Choose pump sources designed for long-term thermal reliability⁸

• Ensure stable current driving without ripple

5. Facet Contamination and Coating Degradation

Contamination at the facet increases absorption and eventually leads to COD.

Causes

• Dust or oil contamination during assembly

• Moisture ingress

• Sub-optimal cleanroom conditions

• Improper handling

• Poor-quality AR coatings

Symptoms

• Gradual optical power decline

• Increased near-field noise

• Localized hot spots

• Facet darkening

Prevention

• Assemble modules in cleanroom conditions

• Use hermetic seal packages for high reliability

• Ensure proper optical cleaning procedures

• Avoid touching or blowing into the emitting region

6. Optical Feedback and Back-Reflection Damage

Pump diodes used in:

• DPSS UV lasers

• Femtosecond pump sources

• Fiber-coupled modules

are especially sensitive to back-reflection⁹.

Causes

• Misaligned optics

• No isolator for reflective targets

• Fiber tip reflection

• SHG/THG retroreflection

Symptoms

• Power oscillation

• Sudden output drop

• Increased noise

• Mode hopping

Prevention

• Integrate optical isolators¹⁰

• Correct beam alignment

• Use angled fiber connectors (APC)

• Ensure mechanical stability of optical mounts

7. Aging and Gradual Degradation

Like all semiconductor devices, pump diodes undergo slow degradation.

Typical degradation factors

• Defect growth inside the semiconductor

• Thermal cycling stress

• High current density

• Photo-induced defect growth

Symptoms

• Output gradually drops over months/years

• Threshold current increases

• Wavelength shifts permanently

Prevention

• Operate well below rated maximum current

• Keep operating temperature stable

• Choose pump modules with low defect density chips

• Perform regular performance monitoring

How Vivlaser Prevents Pump Diode Failures

At Vivlaser, all pump modules are engineered with long-term reliability in mind:

• Wavelength-locked 878/880 nm and 455 nm options

• Optimized thermal paths with copper micro-channel heat sinks

• Cleanroom assembly to prevent facet contamination

• Strict burn-in and aging tests before shipment

• Low-noise constant-current driving design

• Back-reflection protection for DPSS and UV systems

These measures ensure stable operation even under demanding industrial loads.

Conclusion

Pump diode failures can be costly, but most of them are preventable through proper thermal management, electrical protection, optical isolation, and clean handling practices.

Choosing high-quality pump sources — and integrating them correctly — dramatically extends the lifetime and stability of any laser system.

---
